Exam AZ-700 topic 2 question 7 discussion

Actual exam question from Microsoft's AZ-700

Question #: 7
Topic #: 2

HOTSPOT -
You plan to deploy Azure Virtual WAN.
You need to deploy a virtual WAN hub that meets the following requirements:
✑ Supports 10 sites that will connect to the virtual WAN hub by using a Site-to-Site VPN connection
✑ Supports 8 Gbps of ExpressRoute traffic
✑ Minimizes costs
What should you configure? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

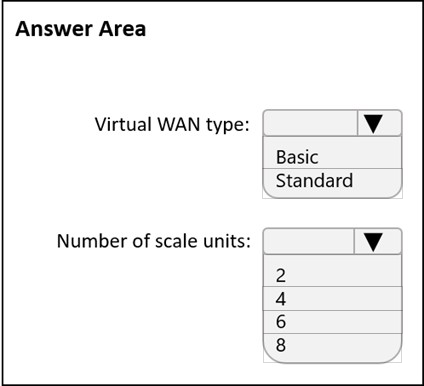

Hot Area:

Show Suggested Answer

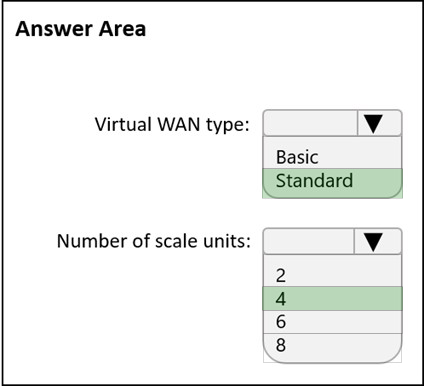

Suggested Answer:

Reference:
https://docs.microsoft.com/en-us/azure/virtual-wan/virtual-wan-about

by Bharat at Oct. 11, 2021, 9:10 p.m.

Comments

Submit Cancel

Bharat

Highly Voted 2 years, 7 months ago

8 Gig Express Route. 2 GB per ER scale unit. Therefore number of scale units = 8/2 = 4 https://www.wwt.com/article/microsoft-azure-virtual-wan-cloud-networking-architecture

upvoted 45 times

Mirek

2 years, 7 months ago

https://www.azure.cn/en-us/pricing/details/virtual-wan/

upvoted 7 times

...

walkwolf3

Highly Voted 2 years, 6 months ago

Answer is correct. Basic virtual WAN supports Site-to-site VPN only Standard virtual WAN supports ExpressRoute User VPN (P2S) VPN (site-to-site) Inter-hub and VNet-to-VNet transiting through the virtual hub Azure Firewall NVA in a virtual WAN https://docs.microsoft.com/en-us/azure/virtual-wan/virtual-wan-about -------- 8G/2G = 4 Express Route Scale Units and Connectivity: Similar in concept to VPN scale units, customers seeking to deploy Express Route connectivity into their Virtual WAN Hubs will incur costs for the scale units provisioned in that hub, with options ranging from 1 to 10 with each representing 2Gbps of ER throughput. https://www.wwt.com/article/microsoft-azure-virtual-wan-cloud-networking-architecture

upvoted 32 times

sapien45

1 year, 8 months ago

Great link !

upvoted 2 times

...

Lazylinux

Most Recent 7 months ago

Given answer is correct

upvoted 3 times

...

Techbiz

8 months, 1 week ago

The given answer is correct, Basic WANs don't support expressroutes

upvoted 1 times

...

raffykian

9 months, 2 weeks ago

this is on my exam today 8/23

upvoted 1 times

...

daemon101

11 months ago

this is where you'll see the scale unit for ExpressRoute and VPN. 1 scale unit of VPN = 500 Mbps 1 scale unit of ExpressRoute = 2 Gbps The requirement for Expressroute throughput is 8Gbps so 4 ER scale units are needed. The answer is correct. https://learn.microsoft.com/en-us/azure/virtual-wan/virtual-wan-faq

upvoted 1 times

daemon101

11 months ago

I think the first requirement which is 10 sites that will connect to your virtual wan hub doesn't matter much as one virtual wan hub supports up to 1000 sites.

upvoted 1 times

...

bakamon

1 year ago

Correct Answer : :: Standard :: 4

upvoted 1 times

...

DeepMoon

1 year, 5 months ago

I don't see any reference on Azure Documentation (learn.microsoft.com) talking about 4 Scale Units give 8GB. When I look for Virtual WAN Scale Units, all I find is this doc: https://learn.microsoft.com/en-us/azure/virtual-wan/virtual-wan-faq#for-user-vpn-point-to-site--how-many-clients-are-supported According to this chart 4 scale units is wrong. So can someone explain; where did my thinking go wrong.

upvoted 1 times

khanda

1 year, 1 month ago

Each scale unit represents 500Mbps of VPN throughput.

upvoted 1 times

GBAU

7 months, 2 weeks ago

ER Scale units are 2GBps, 500Mbps is for P2S & S2S.

upvoted 1 times

...

charrua86

10 months, 2 weeks ago

https://learn.microsoft.com/en-us/azure/virtual-wan/virtual-wan-faq#what-are-virtual-wan-gateway-scale-units

upvoted 1 times

...

HasanHHH

1 year, 8 months ago

Standard-Available configurations:ExpressRoute,Site-to-Site VPN Basic-Available configurations:Site-to-site VPN only 1 scale unit of ExpressRoute = 2 Gbps. So, 4 scale unit*2 Gbps=8Gbps

upvoted 1 times

...

iwikneerg

1 year, 10 months ago

What are Virtual WAN gateway scale units? A scale unit is a unit defined to pick an aggregate throughput of a gateway in Virtual hub. 1 scale unit of VPN = 500 Mbps. 1 scale unit of ExpressRoute = 2 Gbps. Example: 10 scale unit of VPN would imply 500 Mbps * 10 = 5 Gbps. https://docs.microsoft.com/en-us/azure/virtual-wan/virtual-wan-faq#what-are-virtual-wan-gateway-scale-units

upvoted 2 times

...

1particle

1 year, 10 months ago

Standard and 4 Hub Type Standard: Standard ExpressRoute User VPN (P2S) VPN (site-to-site) Inter-hub and VNet-to-VNet transiting through the virtual hub Azure Firewall NVA in a virtual WAN https://docs.microsoft.com/en-us/azure/virtual-wan/virtual-wan-about#basicstandard Gateway Scale Units: A scale unit is a unit defined to pick an aggregate throughput of a gateway in Virtual hub. 1 scale unit of VPN = 500 Mbps. 1 scale unit of ExpressRoute = 2 Gbps https://docs.microsoft.com/en-us/azure/virtual-wan/virtual-wan-faq#what-are-virtual-wan-gateway-scale-units

upvoted 1 times

...

derrrp

1 year, 10 months ago

Microsoft tryna trick us talking about Site-to-Site which ya'll know is BASIC but then they say ExpressRoute in the next section which we know makes it Standard.

upvoted 6 times

...
