Exam AZ-700 topic 3 question 5 discussion

Actual exam question from Microsoft's AZ-700

Question #: 5
Topic #: 3

HOTSPOT -
You have an Azure Traffic Manager parent profile named TM1. TM1 has two child profiles named TM2 and TM3.
TM1 uses the performance traffic-routing method and has the endpoints shown in the following table.

TM2 uses the weighted traffic-routing method with MinChildEndpoint = 2 and has the endpoints shown in the following table.

TM3 uses priority traffic-routing method and has the endpoints shown in the following table.

The App2, App4, and App6 endpoints have a degraded monitoring status.
To which endpoint is traffic directed? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point

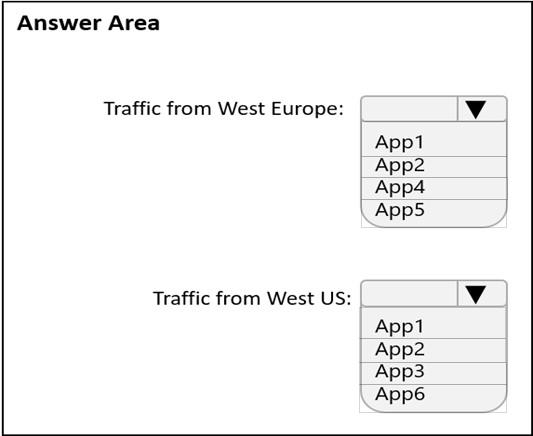

Hot Area:

Show Suggested Answer

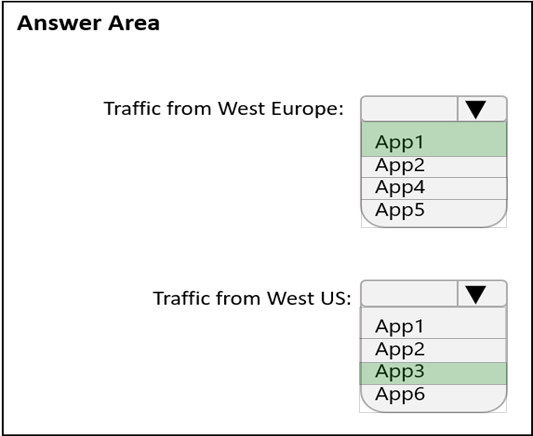

Suggested Answer:

Reference:
https://docs.microsoft.com/en-us/azure/traffic-manager/traffic-manager-nested-profiles

by slieksl at Oct. 14, 2021, 5:39 p.m.

Comments

Submit Cancel

crawfish

Highly Voted 2 years, 8 months ago

Traffic from West Europe: Basedd on TM1 table, West Europe will trigger TM2. However, as the MinChildEndpoint is set to 2, and App4 is degraded (down), the entire TM2 will not be considered available. This goes back to the origin TM1 that uses performance traffic-routing method, which means the closest location is App1 and naturally be the next best performance instance. Hence, Answer = App1 Traffic from West US: Based on TM1 table, West US will trigger TM3. However, both App2 and App6 were degraded (down), so none of them can be considered. This goes back to the original TM1 that uses performance traffic-routing method, from TM1, the other 2 US locations would be App2 and App3. But App2 we know it's already degraded (unavailable), hence the only option would be App3. Answer = App3

upvoted 262 times

CiscoTerminator

10 months, 3 weeks ago

Spot on my friend. Initially missed the minChildEndpoints =2 but got to you same answer. Thanks for the detailed explanation.

upvoted 1 times

...

macka2005

9 months ago

Great explanation, thanks

upvoted 1 times

...

teamaws

2 years, 7 months ago

Brilliant explanation, learned a lot from that and the documentation: https://docs.microsoft.com/en-us/azure/traffic-manager/traffic-manager-faqs#how-does-traffic-manager-compute-the-health-of-a-nested-endpoint-in-a-parent-profile

upvoted 8 times

...

jeffangel28

1 year, 10 months ago

Right! Official document by the way... https://docs.microsoft.com/en-us/azure/traffic-manager/traffic-manager-nested-profiles

upvoted 2 times

...

Load full discussion...

...

JennyHuang36

Highly Voted 1 year, 4 months ago

In exam Feb, 2023

upvoted 5 times

...

Rajan395

Most Recent 1 year, 5 months ago

correct answer

upvoted 2 times

...

sshera

1 year, 5 months ago

in exam 4jan23

upvoted 2 times

...

Andersonalm

1 year, 7 months ago

Correct!

upvoted 1 times

...

2 years, 8 months ago

It should be App5 and App3.

upvoted 3 times

Roman_Rabodzey

2 years, 8 months ago

There is traffic-routing method with MinChildEndpoint = 2. The parameter determines the minimum number of available endpoints in the child profile. So the parent profile considers the entire child profile to be unavailable and directs traffic to the other endpoints.

upvoted 14 times

...
