Exam AZ-220 topic 3 question 9 discussion

Actual exam question from Microsoft's AZ-220
Question #: 9
Topic #: 3
[All AZ-220 Questions]

HOTSPOT -

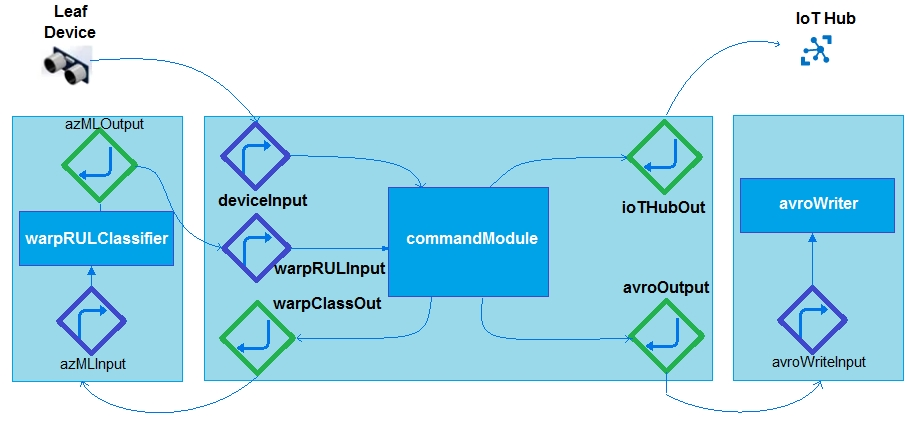

You need to configure Azure IoT Edge module routing to ensure that modules route traffic as shown in the following exhibit.

How should you complete the IoT Edge module routes? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

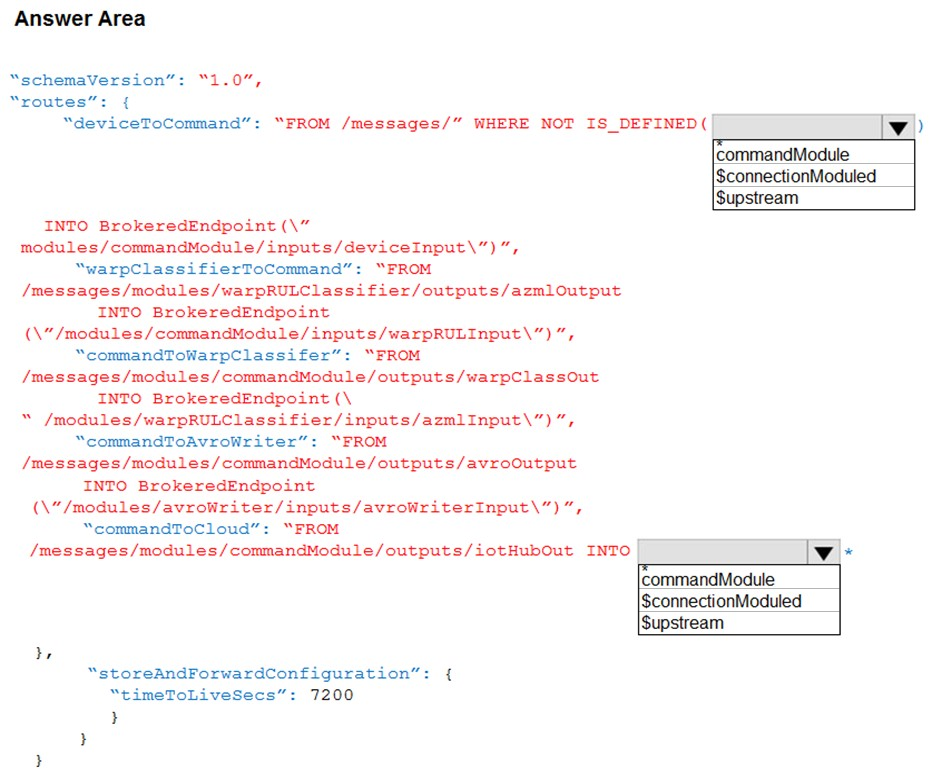

Hot Area:

Show Suggested Answer Hide Answer
Suggested Answer:
Box 1: $connectionModuled -
Add a route that tells the edge hub to route any message received by the IoT Edge device that was not sent by an IoT Edge module.

Box 2: $upstream -
Send messages to $upstream, which passes the messages to the connected IoT Hub.
Reference:
https://docs.microsoft.com/en-us/azure/iot-edge/tutorial-machine-learning-edge-06-custom-modules
by d0bermannn at Dec. 31, 2021, 8:25 a.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
d0bermannn
3 years, 5 months ago
Provided answer is correct, but in question there is some typo must be connectionModuleID not connectionModuled
upvoted 4 times
...
