Exam AZ-305 topic 4 question 7 discussion

Actual exam question from Microsoft's AZ-305

Question #: 7
Topic #: 4

HOTSPOT -
Your company develops a web service that is deployed to an Azure virtual machine named VM1. The web service allows an API to access real-time data from
VM1.

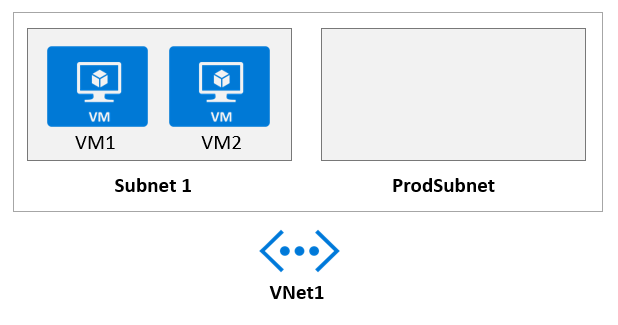

The current virtual machine deployment is shown in the Deployment exhibit.

The chief technology officer (CTO) sends you the following email message: "Our developers have deployed the web service to a virtual machine named VM1.
Testing has shown that the API is accessible from VM1 and VM2. Our partners must be able to connect to the API over the Internet. Partners will use this data in applications that they develop."

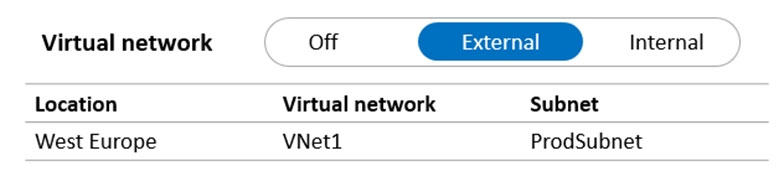

You deploy an Azure API Management (APIM) service. The relevant API Management configuration is shown in the API exhibit.

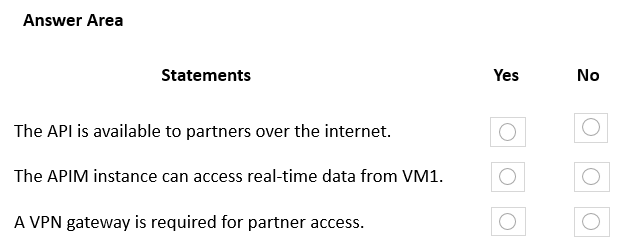

For each of the following statements, select Yes if the statement is true. Otherwise, select No.
NOTE: Each correct selection is worth one point.
Hot Area:

Show Suggested Answer

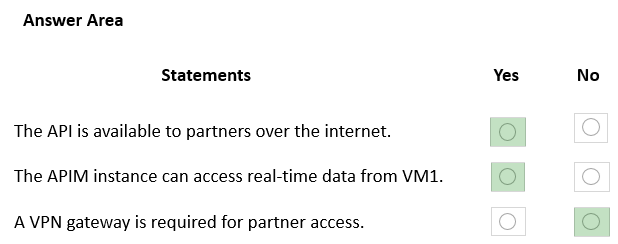

Suggested Answer:

Reference:
https://docs.microsoft.com/en-us/azure/api-management/api-management-using-with-vnet

by SilverFox22 at Jan. 1, 2022, 9:49 p.m.

Comments

Submit Cancel

orionduo

Highly Voted 2 years, 5 months ago

The answer is right. Yes - Because we are using an APIM, deployed to a VNET but configured to be "External" Yes - Because the APIM is deployed in the same vNET as VM1 just in a different subnet. Communication between subnets are enabled by default and there is no mention of otherwise. No - VPN required because the APIM is accessible from the internet by virtue of it being configured as "External"

upvoted 51 times

...

AKYK

Highly Voted 3 years, 4 months ago

Correct answers!

upvoted 25 times

...

KAG22

Most Recent 1 year, 3 months ago

Got this one on an exam in March 2024, so still used

upvoted 7 times

ea4f063

11 months, 2 weeks ago

out of 286 questions, how many did you get? I gonna take exam in few days?

upvoted 1 times

...

funlove15

2 years, 3 months ago

Correct

upvoted 2 times

...

rehanalam

2 years, 5 months ago

looks like are are no . subnet is mandatory to add a vent ,, it can only connect to the subnet mentioned under vent.. not the all subnet.

upvoted 5 times

...

Q12346

2 years, 5 months ago

shown on 1/14/2023

upvoted 10 times

...

JulienYork

2 years, 7 months ago

yes as it seems

upvoted 1 times

...

itvinoth83

2 years, 7 months ago

On the AZ 305 exam, 28/11/22

upvoted 6 times

...

mohamed1999

2 years, 8 months ago

The reason it is Yes, Yes, No is because when you deploy the APIM it is accessible from the internet and due to no mention of modifications on the NSG we can assume that traffic in the Vnet can move freely.

upvoted 3 times

...

AubinBakana

2 years, 11 months ago

Basically, you deploy the APIM in ProdSubnet. It's a little guessing game at this stage as they do not say anything about the virtual network(VNET1) or NSG. Because the API on VM1 is accessible over the internet, it is assumed that you can connect VNET1 from the internet. ProdSubnet is in VNET1, default security rules imply they can communicate freely. Answer is correct but this was not designed as a gift. It's a tough one.

upvoted 1 times

...

JaQua

3 years, 1 month ago

Correct answer. See https://docs.microsoft.com/en-us/azure/api-management/virtual-network-concepts?tabs=stv2

upvoted 1 times

...

Gor

3 years, 1 month ago

Answers are correct.

upvoted 1 times

...

dasEnder

3 years, 1 month ago

When you think they are making a question about Azure API Management and results is a question about default VNet and NSG networking rules, dang!

upvoted 2 times

...

akkrishna22

3 years, 3 months ago

was there in the exam on 03-31-2022

upvoted 5 times

...

Justin0020

3 years, 4 months ago

Was in my exam om March. 10

upvoted 4 times

...

hamid28

3 years, 6 months ago

correct answer

upvoted 5 times

...

frenchy237

3 years, 6 months ago

Why is the first part yes? They selected Prod Subnet not Subnet 1. This part confuses me

upvoted 10 times

SilverFox22

3 years, 6 months ago

From the graphic in https://docs.microsoft.com/en-us/azure/api-management/api-management-using-with-vnet, the APIM uses a subnet, but makes resources on the whole VNet available.

upvoted 4 times

...

FrancisFerreira

3 years, 3 months ago

Since they didn't say anything about it, we gotta assume default access between subnets is in place, which means resources in ProdSubnet can access resources in Subnet1 and vice-versa. And that is why the answer is Yes. It would be No only if the subnets were segregated (via NSGs, for instance).

upvoted 12 times

...
