Exam AZ-700 topic 3 question 14 discussion

Must match SKU and Region.

I think it's B. IP3 only. Must match SKU and Location

B is Honey and as per others comments SKU and region for IP MUST be same as LB

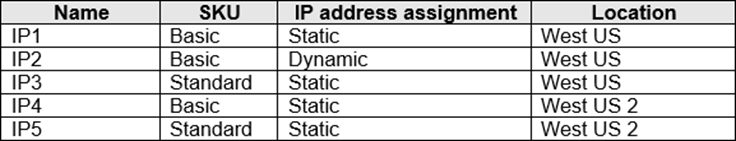

LB1 can use IP3 only. Explanation: The load balancer LB1 requires a public IP address that meets the following criteria: Type: Public SKU: Standard Location: West US Among the five public IP addresses listed in the table, only IP3 meets all these criteria. IP1 and IP4 are located in West US and have a Basic SKU, so they cannot be used for a Standard SKU load balancer in West US. IP2 is located in West US and has a Basic SKU, but it is a dynamic IP address, which is not supported for a load balancer. IP5 is located in West US 2 and has a Standard SKU, but it cannot be used for a load balancer in West US. Therefore, the only public IP address that can be used by LB1 is IP3, which has a Standard SKU, a static assignment, and is located in West US.

When creating a load balancer in Azure, you need to specify a public IP address to use as the frontend of the load balancer. The public IP address must be of the same SKU as the load balancer, and it can be either static or dynamic. In this scenario, the load balancer that needs to be created is named LB1 and has the following settings: Location: West US Type: Public SKU: Standard Therefore, you can use the following public IPv4 addresses for LB1: IP3: Standard SKU and static IP assignment, located in West US IP5: Standard SKU and static IP assignment, located in West US 2 IP1, IP2, and IP4 are not suitable for LB1 because they have a Basic SKU, and LB1 requires a Standard SKU. Additionally, IP2 has a dynamic IP address assignment, which is not recommended for use with a load balancer.

It is in Preview ... but possible Azure Standard Load Balancer supports cross-region load balancing enabling geo-redundant High Availability scenarios https://learn.microsoft.com/en-us/azure/load-balancer/cross-region-overview

Standard Load Balancer - Equipped for load-balancing network layer traffic when high performance and ultra-low latency is needed. Routes traffic within => and across regions <=, and to availability zones for high resiliency. https://learn.microsoft.com/en-us/azure/load-balancer/skus

Must match SKU and Region

Correct Answer is F - because Standard SKU Load Balancer routes traffic within and across regions, and to Availability Zones for high resiliency.

I have tested this in my lab and the correct answer is B, IP3 only.

match the SKU and region Answer B

in exam 4jan23

Must match SKU and Region

Public can't treat as static , should be IP3 only

I am only able to add public IP addresses from the same region to the load balancers I create.

Must match SKU and Region.

IP3 only
