Exam AZ-305 topic 1 question 15 discussion

Actual exam question from Microsoft's AZ-305

Question #: 15
Topic #: 1

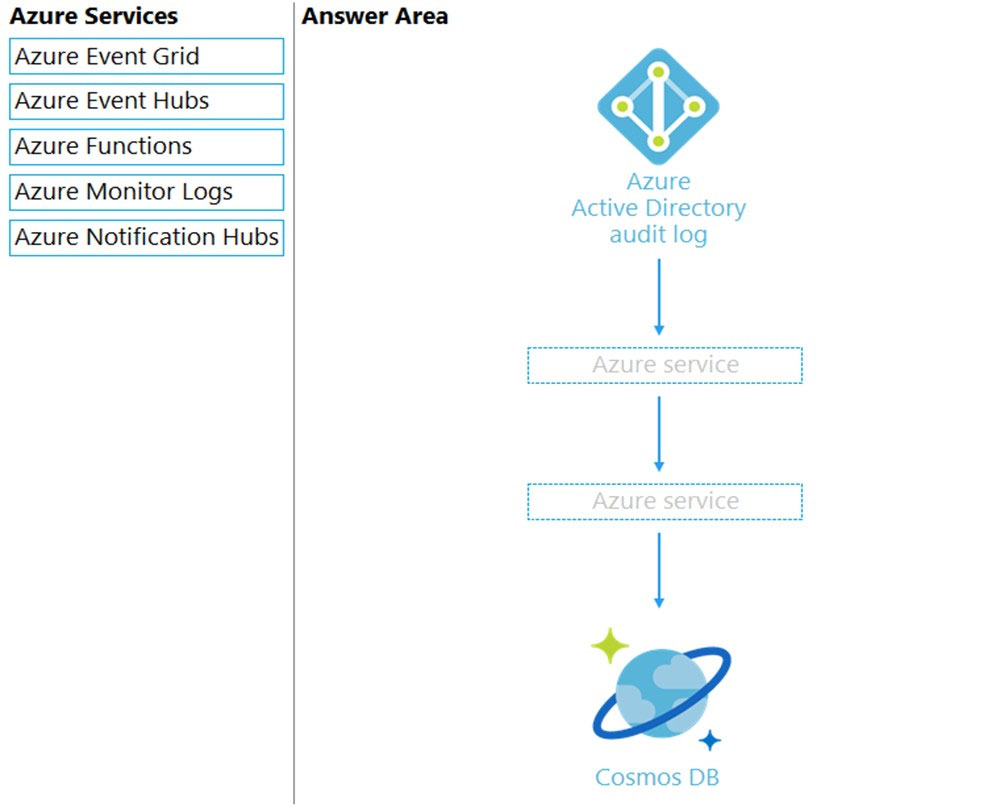

DRAG DROP -
You need to design an architecture to capture the creation of users and the assignment of roles. The captured data must be stored in Azure Cosmos DB.
Which services should you include in the design? To answer, drag the appropriate services to the correct targets. Each service may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.
NOTE: Each correct selection is worth one point.
Select and Place:

Show Suggested Answer

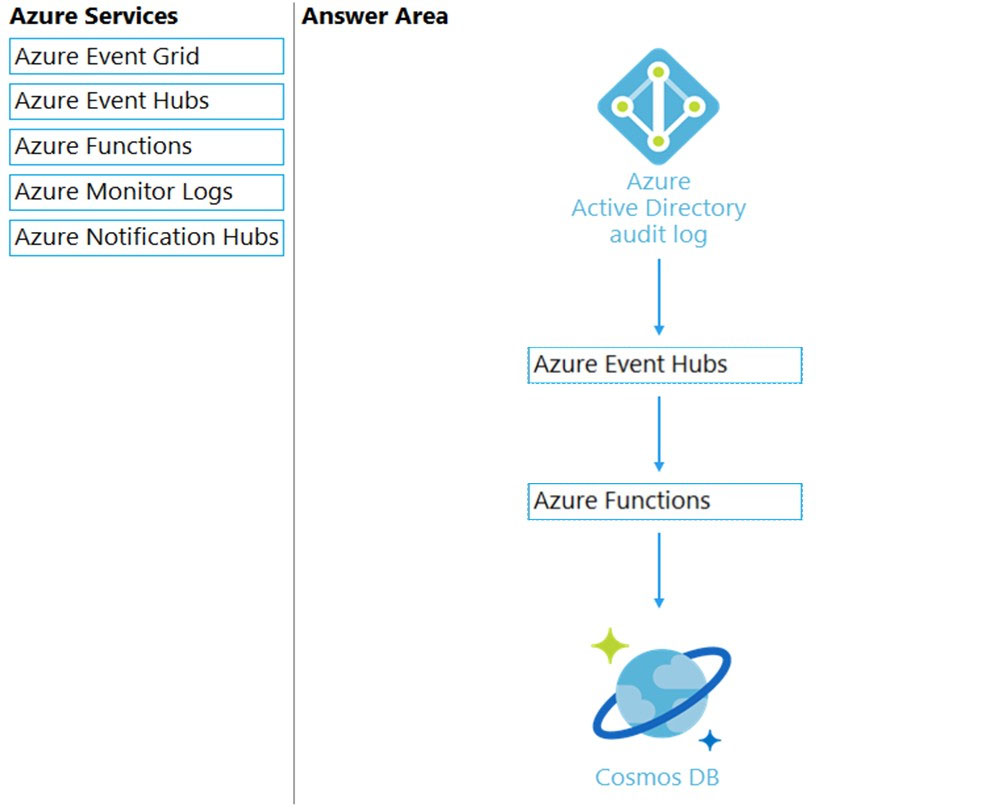

Suggested Answer:

Box 1: Azure Event Hubs -
You can route Azure Active Directory (Azure AD) activity logs to several endpoints for long term retention and data insights.
The Event Hub is used for streaming.

Box 2: Azure Function -
Use an Azure Function along with a cosmos DB change feed, and store the data in Cosmos DB.
Reference:
https://docs.microsoft.com/en-us/azure/active-directory/reports-monitoring/concept-activity-logs-azure-monitor

by santi1975 at Aug. 31, 2022, 6:09 p.m.

Comments

Submit Cancel

santi1975

Highly Voted 2 years, 9 months ago

Although may seem a bit surprising, seems correct: 1. Event Hub: You can export AD logs to an Azure Event Hub (even you can cherry picking which ones) https://docs.microsoft.com/en-us/azure/active-directory/reports-monitoring/tutorial-azure-monitor-stream-logs-to-event-hub 2. Azure Function: You easily create a serverless function to read events from the Event Hub and store them in a CosmosDB. https://docs.microsoft.com/en-us/azure/azure-functions/functions-event-hub-cosmos-db?tabs=bash

upvoted 60 times

...

nkccorp

Highly Voted 2 years, 5 months ago

While Azure Event Hubs can be used to capture and process events, it is generally not the best choice for capturing events related to user creation and role assignment. This is because Azure Event Hubs is primarily designed for large-scale, real-time data streaming, and is not well-suited for capturing individual events or triggering downstream actions.

upvoted 17 times

...

Ekramy_Elnaggar

Most Recent 3 months ago

the given answer is correct, when you try to configure Azure AD Audit Logs "Diagonostic Settings" to export the audit logs you have only 4 available destinations: 1. Send to Log Analytics workspace 2. Archive to a storage account 3. Stream to an event hub 4. Send to partner solution So, Event Hub is the correct answer not Event Grid

upvoted 4 times

...

ahhatem

3 months, 1 week ago

While Event Grid looks suitable, it is not supported! Neither in EntraID diagnostic settings nor in a Log Analytics Workspace! Both support sending to storage account or event hub..

upvoted 2 times

...

[Removed]

7 months, 2 weeks ago

CORRECT

upvoted 2 times

...

Thanveer

8 months ago

Azure Event Grid -> Azure Functions -> Cosmos DB. Azure event grid push the data Azure event hub pull the data these are the difference and key words

upvoted 7 times

Thanveer

6 months, 3 weeks ago

To design an architecture for capturing user creation and role assignment with data stored in Azure Cosmos DB, you can use the following services: 1. **Azure Event Grid**: This service can be used to route events such as user creation or role assignment to other services like Azure Functions. 2. **Azure Functions**: These serverless functions can be triggered by events from Azure Event Grid to process the data and interact with Azure Cosmos DB. 3. **Azure Cosmos DB**: This is your primary data store for capturing user and role information. Azure Event Hub is not necessary for this specific scenario, as it is typically used for big data streaming and event ingestion at scale, which is not required for capturing user creation and role assignment events.

upvoted 5 times

...

MeisAdriano

8 months, 1 week ago

WRONG. Artificial Intelligence answer: Azure Active Directory Log -> Azure Event Grid -> Azure Functions -> Cosmos DB. Azure Event Hubs is great for ingesting and processing large volumes of event data or telemetry, like data from IoT devices or application logs. However, in this scenario, you’re looking to capture and process specific events from Azure Active Directory logs and send them to Cosmos DB. Event Grid is more suitable because it’s designed for delivering discrete events, like user creation and role assignment, with low latency. Event Hubs would be overkill for this task and isn't as streamlined for the specific event-driven architecture needed here. So, Event Grid and Azure Functions are a more efficient choice. Make sense?

upvoted 3 times

...

23169fd

1 year ago

Given answer is correct. Azure Event Grid is better suited for event routing and notification scenarios, whereas Azure Event Hubs is designed for high-throughput data streaming and processing, which is more appropriate for capturing and handling large volumes of Azure AD events. Azure Functions: Purpose: Processes and transforms the captured events. Functionality: Subscribes to Event Hubs, processes the events, and writes the data to Azure Cosmos DB.

upvoted 2 times

...

semse27

1 year, 2 months ago

For people who says it's Azure Event Grid.. i mean, it doesn't really specify how many users is going to be created, so shouldn't we assume it's infinite? Azure Event Grid is primarily focused on discrete events, meaning individual state changes or notifications. While it can handle some volume, it's not designed for the continuous, high-throughput data streams common with user activity tracking. That's why I would go with: -Azure Event Hubs -Azure Functions.

upvoted 4 times

...

Somnath711

1 year, 2 months ago

Event Grid + Azure Function https://learn.microsoft.com/en-us/azure/event-grid/microsoft-entra-events Event Hub can also serve the purpose but it would be costly and heavy weight solution

upvoted 3 times

...

Spikeone

1 year, 3 months ago

I'd sadly agree with event hubs - the link often posted here: https://learn.microsoft.com/en-us/entra/identity/monitoring-health/howto-stream-logs-to-event-hub?tabs=splunk If you follow the steps under Stream logs to an event hub: Browse to Identity > Monitoring & health > Diagnostic settings. You can also select Export Settings from either the Audit Logs or Sign-ins page. There are only 4 options as follows: * Send to Log Analytics workspace * Archive to a storage account * Stream to an event hub * Send to partner solution So, no grid I guess.

upvoted 5 times

...

RanOlfati

1 year, 3 months ago

Event Grid makes more sense to me. Event Hub is a waste of money for this scenario. Remember, it's an architect-level exam.

upvoted 1 times

...

dave22339

1 year, 3 months ago

H C FUNCTION B S M O

upvoted 1 times

...

Harkonnen

1 year, 4 months ago

If your primary goal is to capture user creation and role assignment events for the purpose of auditing, monitoring, or responding to these events in near real-time, Azure Event Grid is a more suitable choice. It's lightweight, easier to set up for event-driven scenarios, and integrates well with serverless Azure Functions for event handling. On the other hand, if you have massive data streams, complex event processing, or scenarios involving large-scale data analytics, Azure Event Hubs might be a better fit.

upvoted 1 times

xRiot007

1 year, 4 months ago

"If your primary goal is to capture user creation and role assignment events for the purpose of auditing, monitoring, or responding to these events in near real-time" - that is not the primary goal. The primary goal is to collect and store audit logs.

upvoted 1 times

...

TomdeBom

1 year, 4 months ago

Capturing audit logs to a destination is done via Diagnostic settings in MS Entra ID. Multiple destinations can be selected, but event grid is not one of them. The destinations you can select are: log analytic workspace, storage acount, event hub and a partner solution.

upvoted 5 times

...

rojeck

1 year, 9 months ago

Event hub + Azure Function is correct https://learn.microsoft.com/en-us/azure/architecture/reference-architectures/serverless/event-processing

upvoted 1 times

...

TiredofTesting

1 year, 9 months ago

https://azurelessons.com/azure-event-hub-vs-event-grid/ Azure Event Hub is responsible for the ingestion of data without sending data back to the publishers. Azure event grid is -> Responsible for notifying the events that occurred on the publisher’s end with the help of HTTP requests. So 1) Azure event hub 2) Azure Function

upvoted 3 times

...

skipandsnow

1 year, 10 months ago

Will go for Event grid + Azure function while grid is more suitable for audit logs

upvoted 4 times

ConanBarb

1 year, 9 months ago

Absolutely Grid. Read here for Grid vs Hub (Hub is for big data/real-time ingestion) https://learn.microsoft.com/en-us/azure/service-bus-messaging/compare-messaging-services

upvoted 1 times

...
