Exam AZ-204 topic 6 question 31 discussion

DRAG DROP -
You develop and deploy a web app to Azure App Service in a production environment. You scale out the web app to four instances and configure a staging slot to support changes.
You must monitor the web app in the environment to include the following requirements:
✑ Increase web app availability by re-routing requests away from instances with error status codes and automatically replace instances if they remain in an error state after one hour.
✑ Send web server logs, application logs, standard output, and standard error messaging to an Azure Storage blob account.
You need to configure Azure App Service.
Which values should you use? To answer, drag the appropriate configuration value to the correct requirements. Each configuration value may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.
NOTE: Each correct selection is worth one point.

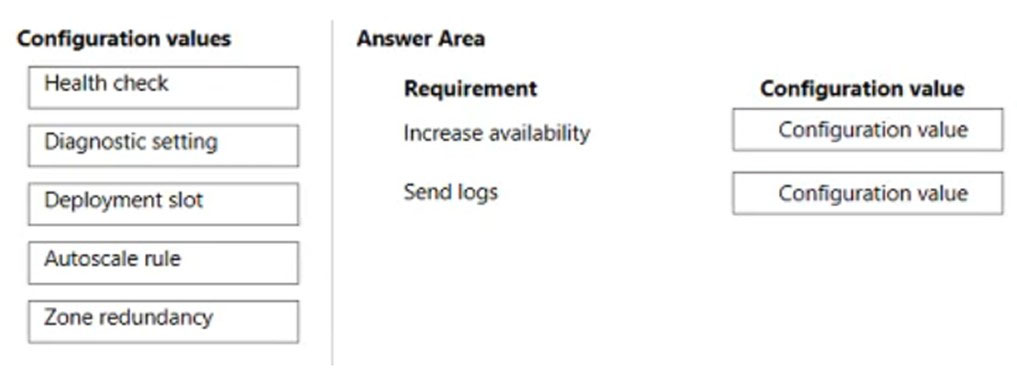

Select and Place:

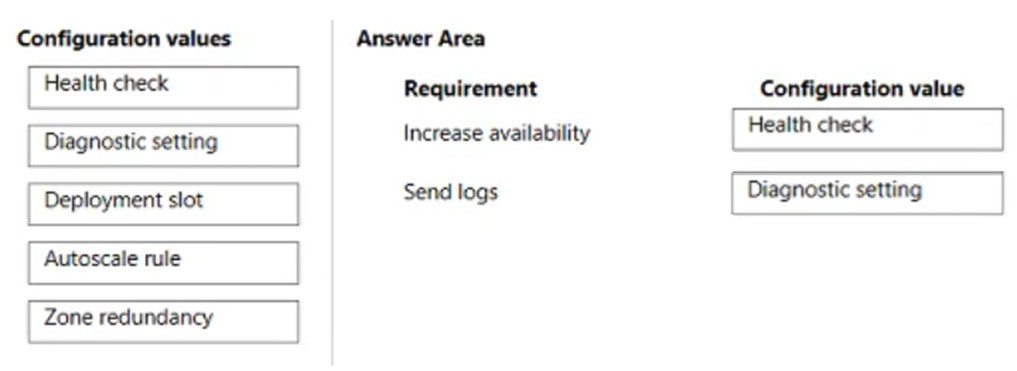

Suggested Answer:
Box 1: Health check -
Health check increases your application's availability by re-routing requests away from unhealthy instances, and replacing instances if they remain unhealthy. Your
App Service plan should be scaled to two or more instances to fully utilize Health check.

Box 2: Diagnostic setting -
Azure provides built-in diagnostics to assist with debugging an App Service app.
With the new Azure Monitor integration, you can create Diagnostic Settings to send logs to Storage Accounts, Event Hubs and Log Analytics.
Reference:
https://docs.microsoft.com/en-us/azure/app-service/monitor-instances-health-check https://docs.microsoft.com/en-us/azure/app-service/troubleshoot-diagnostic-logs
