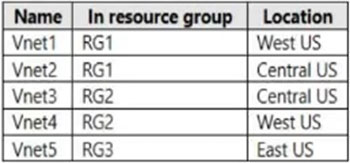

You have an Azure subscription that contains the virtual networks shown in the following table. You plan to deploy an Azure firewall named AF1 to RG1 in the West US Azure region. To which virtual networks can you deploy AF1?
The answer correct is C. I created a Lab with especification and i tried to select the vnet in rg2 when i recived the message "Azure firewall cannot be used with a from a different resource group". The lab was created from Azure Portal.
Are there any firewall resource group restrictions?
Yes.
The firewall and VNet must be in the same resource group.
The public IP address can be in any resource group.
The firewall, VNet, and the public IP address all must be in the same subscription.
I C is correct as per
Are there any firewall resource group restrictions?
Yes. The firewall, VNet, and the public IP address all must be in the same resource group.
https://learn.microsoft.com/en-us/azure/firewall/firewall-faq
and one FW per region
The right answer is C, an Azure firewall instance can only be deployed to a single VNet. The rest of the VNets can consume the firewall through a Hub-Spoke topology and Firewall policies
Firewall and VNET must be from the same RG
https://learn.microsoft.com/en-us/azure/firewall/firewall-faq#are-there-any-firewall-resource-group-restrictions
Are there any firewall resource group restrictions? Yes. The firewall, VNet, and the public IP address all must be in the same resource group.
So, answer here is just VNET 1.
https://learn.microsoft.com/en-us/azure/firewall/firewall-faq#are-there-any-firewall-resource-group-restrictions
