Exam MD-100 topic 2 question 40 discussion

Actual exam question from Microsoft's MD-100

Question #: 40
Topic #: 2

DRAG DROP -
You have a computer that runs Windows 10 and has the Windows Assessment and Deployment Kit (Windows ADK) installed.
You need to perform the following tasks:
✑ Prepare a Windows PE (WinPE) working directory.
✑ Add scripting support to a WinPE image.
✑ Mount and unmount a WinPE image.
Which command should you use for each task? To answer, drag the appropriate commands to the correct tasks. Each command may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.
NOTE: Each correct selection is worth one point.

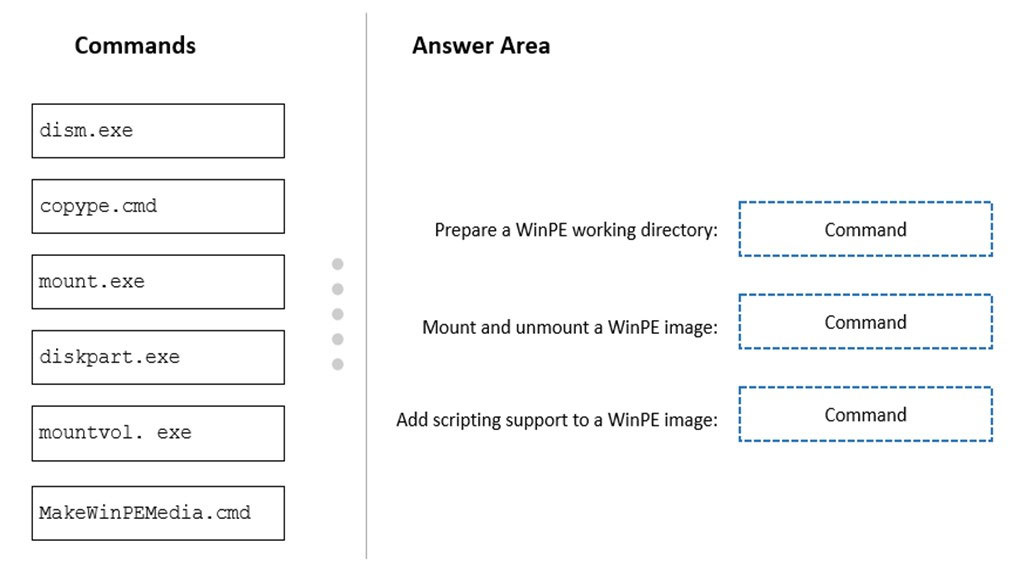

Select and Place:

Show Suggested Answer

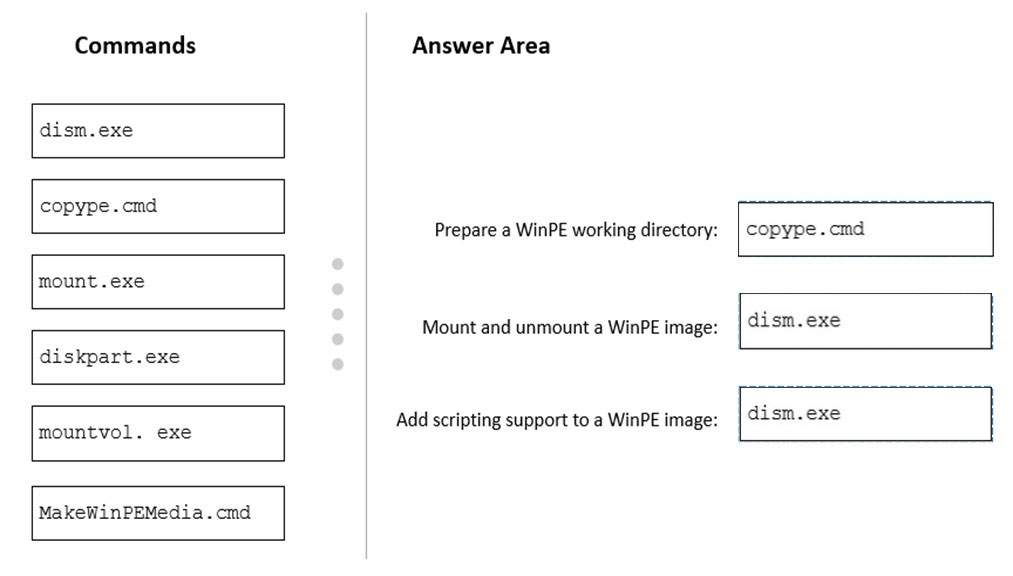

Suggested Answer:

Reference:
https://docs.microsoft.com/en-us/windows-hardware/manufacture/desktop/winpe-mount-and-customize?view=windows-11 https://docs.microsoft.com/en-us/windows-hardware/manufacture/desktop/winpe-adding-powershell-support-to-windows-pe?view=windows-11

by Kock at Sept. 3, 2022, 3:36 a.m.

Comments

Submit Cancel

Spefx

2 years, 1 month ago

The answer provided is correct and quite nicely laid out in the following microsoft "Learn" article: https://learn.microsoft.com/en-us/windows-hardware/manufacture/desktop/winpe-adding-powershell-support-to-windows-pe?view=windows-11 Step 1: Prepare a local copy of Windows PE files, Example using copype Step 2. Mount image, Example using dism /mount-image Step 3. Add required components, example using dism /Add-Package

upvoted 3 times

...

CSue

2 years, 2 months ago

You can add scripting support using dism. This tool allows you to add packages and drivers to a Windows Preinstallation Environment (WinPE) image, including support for Windows scripting technologies such as Windows PowerShell and Windows Script Host.

upvoted 1 times

...

mrjeet

2 years, 3 months ago

This was on 1/27/23 test! Know this material!

upvoted 4 times

...

flabezerra

2 years, 4 months ago

I believe the last statement about Add scripting support to a WinPE image is not Dism itself. Looking up the picture in the question, there's probably an option for Startnet.cmd (which is the file where those scripts live) scrolling down Commands tab. To add that Startnet.cmd file, you simply copy the file using the Copy command to the %SYSTEMROOT%\System32 of your customized Windows PE image. So the answer of the last statement wouldn't be Dism. I don't think so. I also did not find any resources officially made by Microsoft. Customize WinPE With Wallpaper and Custom Startup Script: https://jacobsalmela.com/2016/10/03/customize-winpe-with-wallpaper-and-custom-startup-script/

upvoted 1 times

...

Kock

2 years, 8 months ago

Copype creates a working directory that contains a standard set of Windows https://docs.microsoft.com/en-us/windows-hardware/manufacture/desktop/copype-command-line-options?source=recommendations&view=windows-11 Use DISM to mount the WinPE image into a temporary location on your technician PC: https://docs.microsoft.com/en-us/windows-hardware/manufacture/desktop/winpe-mount-and-customize?view=windows-11
