Exam AZ-140 topic 4 question 32 discussion

Actual exam question from Microsoft's AZ-140

Question #: 32
Topic #: 4

HOTSPOT -
You create an Azure Virtual Desktop host pool as shown in the following exhibit.

Use the drop-down menus to select the answer choice that answers each question based on the information presented in the graphic.
NOTE: Each correct selection is worth one point.

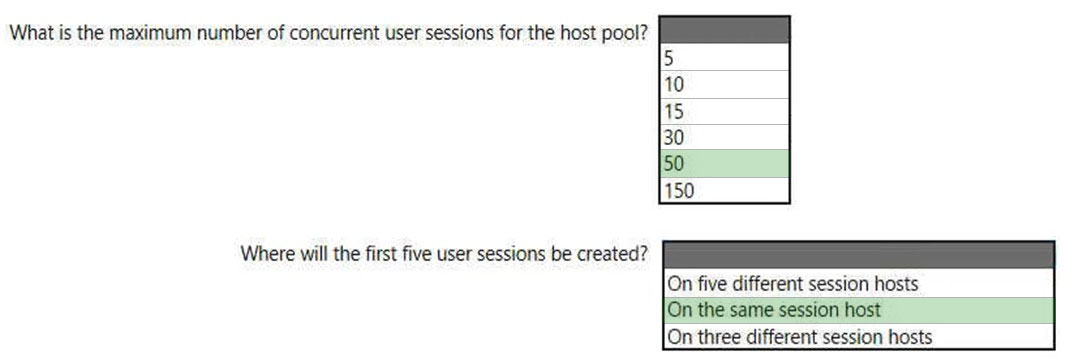

Hot Area:

Show Suggested Answer

Suggested Answer:

Box 1: 50 -
Max session limit is set to 10.
This is the maximum number of concurrent sessions on a host. For depth-first, once a VM hits 10 users, then the next VM will begin accepting users.
There are 5 VMs, so the maximum number of concurrent user sessions is 50 (10x5).

Box 2: On the same session host -
The load balancing algorithm is set to depth-first.
The five user sessions will be created on the first session host.
Note: Depth-first load balancing allows you to saturate a session host with user sessions in a host pool. Once the first session host reaches its session limit threshold, the load balancer directs any new user connections to the next session host in the host pool until it reaches its limit, and so on.
Reference:
https://docs.microsoft.com/en-us/azure/virtual-desktop/host-pool-load-balancing https://deviceadvice.io/2021/03/30/how-to-create-pooled-shared-windows-virtual-desktop-environment/

by Sorataj at Sept. 3, 2022, 3:19 p.m.

Comments

Submit Cancel

Magis

Highly Voted 1 year, 7 months ago

Correct. - Pool might have 5 hosts with max 10 sessions. So 5 x 10 = 50 - Depth-first algorithm putting user sessions to the single host first & strat add to the second host only once first one will reach sessions limit.

upvoted 6 times

...

[Removed]

Most Recent 9 months, 4 weeks ago

Answers are correct Read carefully. Max concurrent connections for Host Pool! 10 connections per host x5 hosts =50 connections. I was initially confused because I read too fast and assumed the question was asking about the Maximum connections per host.

upvoted 2 times

...

Sorataj

1 year, 9 months ago

correct

upvoted 3 times

...
