Exam AZ-400 topic 8 question 17 discussion

Actual exam question from Microsoft's AZ-400
Question #: 17
Topic #: 8
[All AZ-400 Questions]

SIMULATION -
You plan to add a new web farm that will be published by using an IP address of 10.0.0.5.
You need to allow traffic from the web farm to an Azure Database for MySQL server named az400-123456789-mysql.
To complete this task, sign in to the Microsoft Azure portal.

Show Suggested Answer Hide Answer
Suggested Answer: See explanation below.
Server-level firewall rules can be used to manage access to an Azure Database for MySQL Server from a specified IP address or a range of IP addresses.
Create a server-level firewall rule in the Azure portal

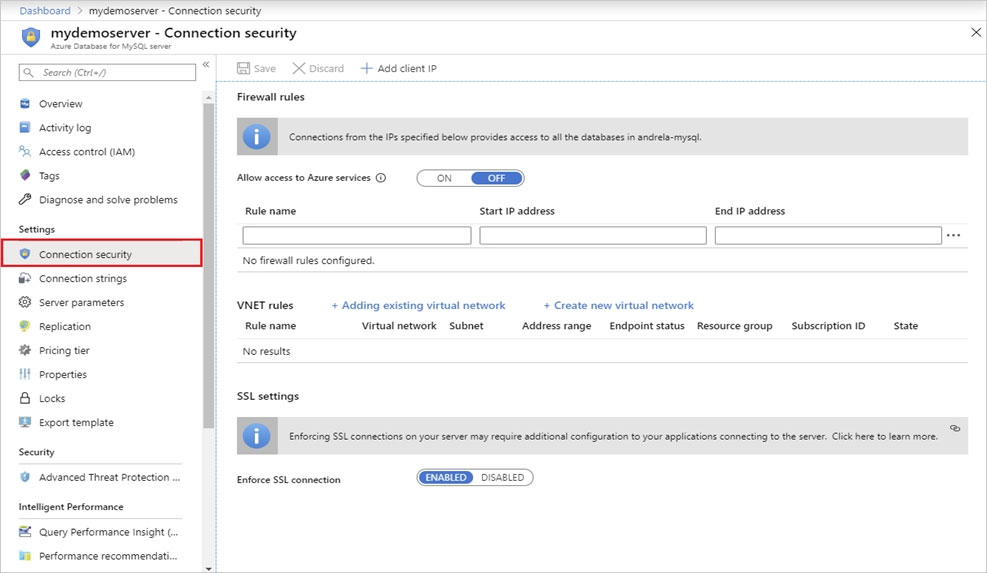

1. On the MySQL server page, under Settings heading, click Connection Security to open the Connection Security page for the Azure Database for MySQL.

2. In the firewall rules for the Azure Database for MySQL, you can specify a single IP address or a range of addresses. If you want to limit the rule to a single IP address, type the same address in the Start IP and End IP fields. Opening the firewall enables administrators, users, and application to access any database on the MySQL server to which they have valid credentials.

3. Click Save on the toolbar to save this server-level firewall rule. Wait for the confirmation that the update to the firewall rules is successful.
Reference:
https://docs.microsoft.com/en-us/azure/mysql/howto-manage-firewall-using-portal#create-a-server-level-firewall-rule-in-the-azure-portal
by codeScalable at Nov. 21, 2022, 2:31 p.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
codeScalable
Highly Voted 1 year, 5 months ago
As of November 2022, you can find this configuration under the Security heading. Click the Networking button and scroll to the bottom of the page to add or view firewall rules
upvoted 5 times
AzureJobsTillRetire
1 year, 3 months ago
add a firewall rule, give the rule a name, and set both Start IP and End IP to 10.0.0.5
upvoted 7 times
Migas_F_Santos
6 months, 4 weeks ago
That only works for Public IPs. Vnet/Subnet should be added as a Service Endpoint in the MySQL.
upvoted 5 times
...
...
...
