Exam AZ-300 topic 1 question 53 discussion

Actual exam question from Microsoft's AZ-300
Question #: 53
Topic #: 1
[All AZ-300 Questions]

HOTSPOT -
Your company has a virtualization environment that contains the virtualization hosts shown in the following table.

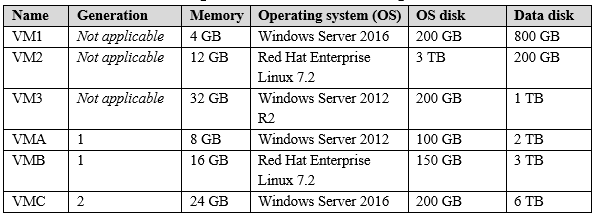

The virtual machines are configured as shown in the following table.

All the virtual machines use basic disks. VM1 is protected by using BitLocker Drive Encryption (BitLocker).
You plan to migrate the virtual machines to Azure by using Azure Site Recovery.
You need to identify which virtual machines can be migrated.
Which virtual machines should you identify for each server? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

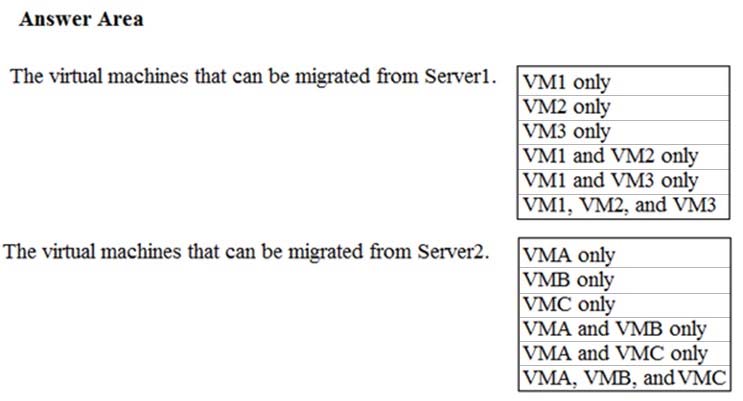

Hot Area:

Show Suggested Answer Hide Answer

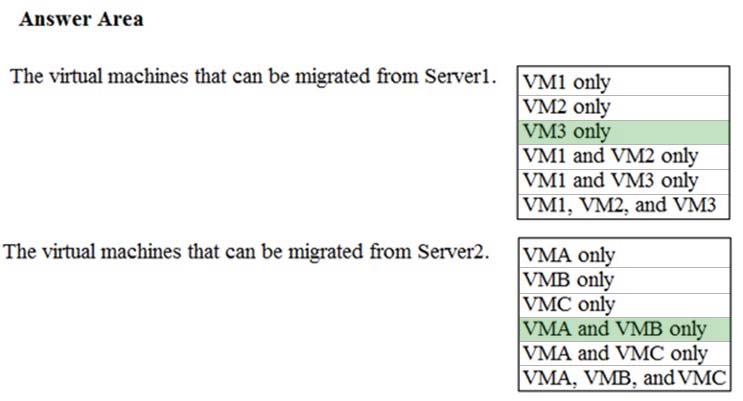

Suggested Answer:
Incorrect Answers:
VM1 cannot be migrates as it has BitLocker enabled.
VM2 cannot be migrates as the OS disk on VM2 is larger than 2TB.
VMC cannot be migrates as the Data disk on VMC is larger than 4TB.
References:
https://docs.microsoft.com/en-us/azure/site-recovery/hyper-v-azure-support-matrix#azure-vm-requirements
by dumpmaster at Nov. 23, 2019, 6:08 p.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
tundervirld
Highly Voted 4 years, 10 months ago
The answer is right: More detail about, Incorrect Answers: - VM1 cannot be migrated as it has BitLocker enabled, and BitLocker isn’t supported in Site Recovery. - VM2 cannot be migrated as the OS Disk on VM2 is 3TB, the specification says if you are using VMWare: -- Operating system disk size(OS) Up to 2,048 GB. -- Data Disk up to 8,192 GB when replicating to managed disk (9.26 version onwards) and Up to 4,095 GB when replicating to storage account. - VMC cannot be migrated as the Data Disk on VMC is 6TB, the specification says if you are using Hyper-V: -- Operating system disk size(OS) Disk Up to 2,048 GB for generation 1 VMs and Up to 300 GB for generation 2 VMs. -- Data Disk up to 4,095 GB.
upvoted 12 times
...
Andy001
Highly Voted 5 years, 3 months ago
The answer provided is correct - VM3, VMA, and VMB can be migrated only https://docs.microsoft.com/en-us/azure/site-recovery/vmware-physical-azure-support-matrix https://docs.microsoft.com/en-us/azure/site-recovery/hyper-v-azure-support-matrix
upvoted 11 times
...
UR
Most Recent 4 years, 4 months ago
We can disable Bitlocker and enable replication. Then answers would be VM1, VM3, VMA, and VMB Please refer Bitlocker section of the below article https://docs.microsoft.com/en-us/azure/site-recovery/hyper-v-azure-support-matrix#azure-vm-requirements
upvoted 1 times
...
SunnyAU
4 years, 8 months ago
For Hyper-V, according to this: https://docs.microsoft.com/en-us/azure/site-recovery/hyper-v-azure-support-matrix , I can't see Linux support (i.e is VM-B supported) . Can someone comment on this please?
upvoted 2 times
samirnayak
4 years, 8 months ago
Linux is supported for Hyper-V vm migration - https://docs.microsoft.com/en-us/azure/migrate/migrate-support-matrix-hyper-v-migration
upvoted 2 times
...
...
fishtech
4 years, 9 months ago
Given Answer is correct!
upvoted 1 times
...
gboyega
4 years, 10 months ago
Given Answer is correct
upvoted 4 times
...
bigbob22
5 years ago
Sorry, why could VM1 be migrated to AZURE ?
upvoted 1 times
bigbob22
5 years ago
Oh, check the questions again! vm1 with bitlocker. so only vm3.
upvoted 2 times
...
...
Shiven
5 years, 2 months ago
VMware: Operating system disk size Up to 2,048 GB. Data disk size Up to 8,192 GB when replicating to managed disk (9.26 version onwards) Up to 4,095 GB when replicating to storage account Hyper-V: Operating system disk size Up to 2,048 GB for generation 1 VMs. Up to 300 GB for generation 2 VMs. Data disk VHD size Up to 4,095 GB
upvoted 7 times
praveen97
4 years, 10 months ago
Yes, for VMWare it supports 8TB for data disk
upvoted 1 times
...
...
mmo
5 years, 3 months ago
8 TB only Physical servers ! here we talk about Hyper-V and VMware
upvoted 1 times
mmo
5 years, 3 months ago
Correction VMware is supported only Hyper-V not for 8 TB
upvoted 1 times
...
...
onlyfunmails
5 years, 4 months ago
https://docs.microsoft.com/en-us/azure/site-recovery/vmware-physical-azure-support-matrix#azure-vm-requirements OS disk size Up to 2,048 GB. Data disk size Up to 8,192 GB when replicating to managed disk (9.26 version +) Up to 4,095 GB when replicating to storage account
upvoted 7 times
onlyfunmails
5 years, 4 months ago
for Hyper-V, https://docs.microsoft.com/en-us/azure/site-recovery/hyper-v-azure-support-matrix#azure-vm-requirements OS disk size Up to 2,048 GB for generation 1 VMs. Up to 300 GB for generation 2 VMs. Data disk VHD size Up to 4,095 GB
upvoted 14 times
...
...
dumpmaster
5 years, 5 months ago
May this is an old question, but you can use Azure Site Recovery for large disk (up to 8 TB): https://azure.microsoft.com/en-us/updates/site-recovery-large-disks-8tb/
upvoted 6 times
Adrian1405
5 years, 5 months ago
VMC server is Generation 2, which is not supported for migration.
upvoted 2 times
Musk
5 years, 5 months ago
According to what I read here it IS suporten https://docs.microsoft.com/en-us/azure/site-recovery/hyper-v-azure-common-questions
upvoted 4 times
tartar
4 years, 8 months ago
VM3 VMa + VMb
