Exam AZ-400 topic 2 question 16 discussion

Actual exam question from Microsoft's AZ-400

Question #: 16
Topic #: 2

SIMULATION -
You need to create and configure an Azure Storage account named az400lod123456789stor in a resource group named RG1lod123456789 to store the boot diagnostics for a virtual machine named VM1.
To complete this task, sign in to the Microsoft Azure portal.

Show Suggested Answer

Suggested Answer: See explanation below.
Step 1: To create a general-purpose v2 storage account in the Azure portal, follow these steps:
1. On the Azure portal menu, select All services. In the list of resources, type Storage Accounts. As you begin typing, the list filters based on your input. Select
Storage Accounts.
2. On the Storage Accounts window that appears, choose Add.
3. Select the subscription in which to create the storage account.
4. Under the Resource group field, select RG1lod123456789
5. Next, enter a name for your storage account named: az400lod123456789stor
6. Select Create.
Step 2: Enable boot diagnostics on existing virtual machine
To enable Boot diagnostics on an existing virtual machine, follow these steps:
1. Sign in to the Azure portal, and then select the virtual machine VM1.

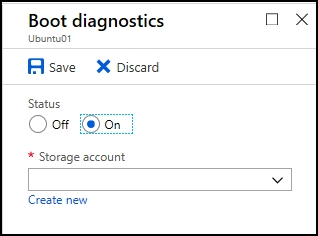

2. In the Support + troubleshooting section, select Boot diagnostics, then select the Settings tab.
3. In Boot diagnostics settings, change the status to On, and from the Storage account drop-down list, select the storage account az400lod123456789stor.
4. Save the change.

You must restart the virtual machine for the change to take effect.
Reference:
https://docs.microsoft.com/en-us/azure/storage/common/storage-account-create https://docs.microsoft.com/en-us/azure/virtual-machines/troubleshooting/boot-diagnostics

by Raimyzzz at Dec. 6, 2022, 2:16 p.m.

Comments

Submit Cancel

Ranzzzan

Highly Voted 2 years, 5 months ago

Under Help section > select boot diagnostics > under setting tab select "Enable with custom storage account" > select storage account and save

upvoted 10 times

...

shafiqeee

Most Recent 8 months, 3 weeks ago

1. Create a storage account as provided name with the subscription provided. 2. Go to VM [should be created already by the exam]-> Help> Boot diagnostics -> Settings -> "Enable with custom storage account", select the storage account and apply.

upvoted 2 times

...

chmadhu

1 year, 8 months ago

Does this kind of simulation questions appearing in actual exam?

upvoted 3 times

...

yana_b

2 years ago

Dependent on whether the VM is created or not we have 2 main paths: 1. Create a storage account 2. Go to VM -> Help> Boot diagnostics -> Settings -> "Enable with custom storage account" 2.1. If we have to create the VM -> tab monitoring -> boot diagnostics -> enable with custom storage account and select the storage created in step 1 or, if you first create the VM -> chose create new and create the storage account directly with the creation of the VM

upvoted 3 times

...
