Exam 70-742 topic 1 question 183 discussion

Actual exam question from Microsoft's 70-742

Question #: 183
Topic #: 1

HOTSPOT -
You deploy a Remote Desktop server named RDP1. RDP1 has two volumes named C and D.
You plan to allow users to connect to RDP1 to run multiple applications.
You need to ensure that when the users establish a Remote Desktop connection to RDP1, volume D is hidden.
What should you do? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

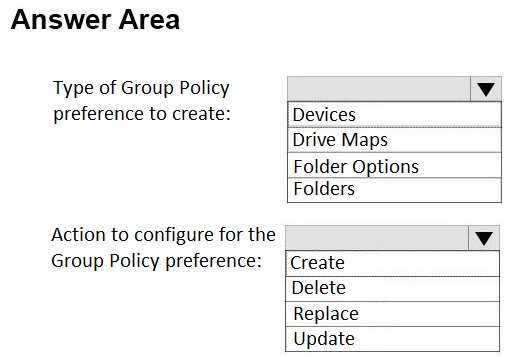

Hot Area:

Show Suggested Answer

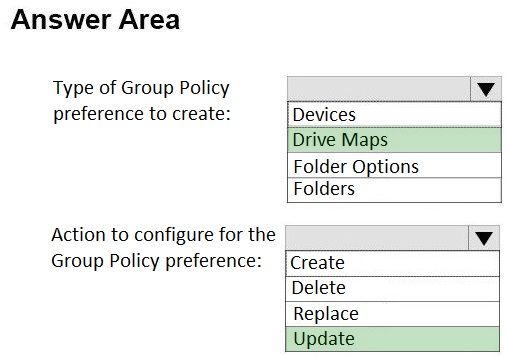

Suggested Answer:

References:
https://support.citrix.com/article/CTX220108

by panda at Nov. 25, 2019, 10:55 a.m.

Comments

Submit Cancel

panda

Highly Voted 5 years, 8 months ago

First answer is Drive map. Second is Update which modifies specified drive map. The other side replace overrides all drive maps. Refer to https://docs.microsoft.com/en-us/previous-versions/windows/it-pro/windows-server-2012-R2-and-2012/dn581924(v=ws.11)

upvoted 9 times

c3r3br4l

5 years, 8 months ago

From the above link, showing why Drive Map and Update are correct: "You can use a Drive Map preference item to configure the visibility of a physical drive rather than a mapped drive. To do so, select the Update action, leave the Location field blank, select the drive letter of the physical drive, and then configure the Hide/Show this drive and Hide/Show all drives options."

upvoted 5 times

...

Ozguraydin

Most Recent 5 years, 7 months ago

I assume Folder and Update for right answer. Because we hide the local disk of the RDP, not shared disk.

upvoted 1 times

Ozguraydin

5 years, 7 months ago

Sorry, I tested it. The answer is right. Drive Map and Update

upvoted 7 times

...
