Exam 70-487 topic 1 question 30 discussion

HOTSPOT -
You are developing a WCF service.
The service must be interoperable with ASP.NET web service clients. In addition, it must be a time-out of three hours.
You need to configure the service to meet the requirements.
You have the following markup:

Which markup segments should you include in Target 1, Target 2, Target 3, Target 4, Target 5, Target 6 and Target 7 to complete the markup? (To answer, select the appropriate markup segment from each drop-down list in the answer area.)

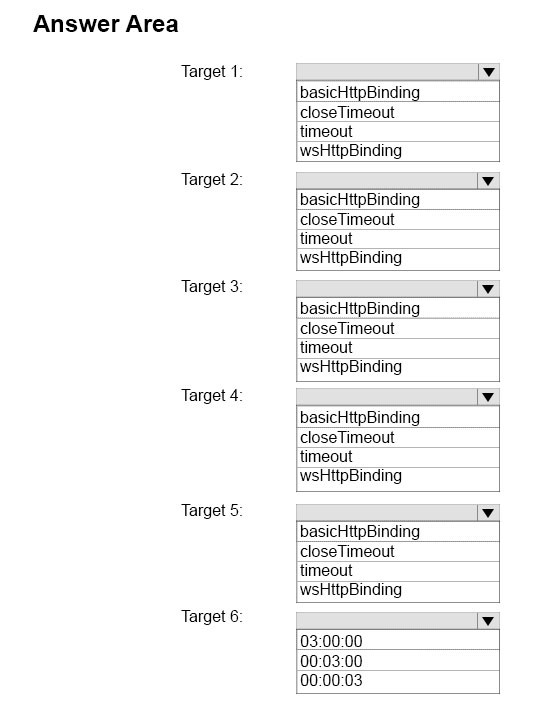

Hot Area:

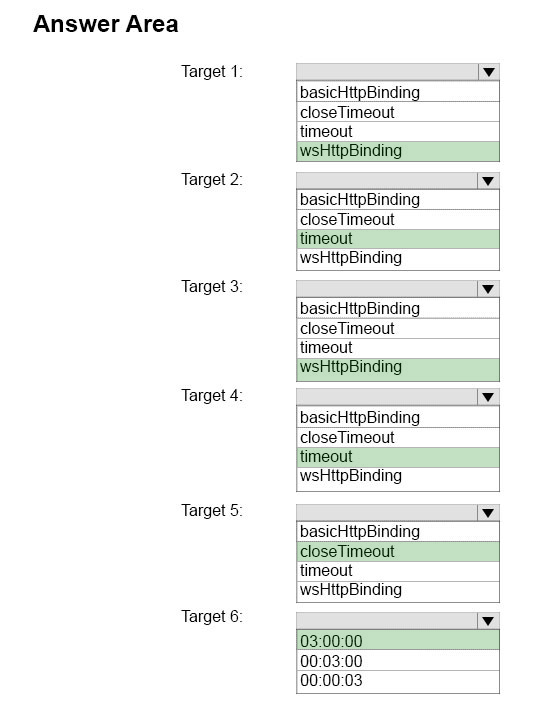

Suggested Answer:
Target 1: wsHTTPBinding -
wsHttpBinding is the full-blown binding, which supports a ton of WS-* features and standards. It has lots more security features: you can use sessionful connections, you can use reliable messaging, you can use transactional control.
Incorrect: Not basicHttpBinding: basicHttpBinding is the very basic binding (SOAP 1.1). It is not much in terms of security, not much else in terms of features, but compatible to just about any SOAP client out there. It is great for interoperability, but weak on features and security.

Target 2: timeout -
Bindingconfiguration (Target 2) and Binding name (Target 4) must be the same. Timeout is not use elsewhere and is an appropriate choice.

Target 3: WSHttpBinding -

Target 4: timeout -
Bindingconfiguration (Target 2) and Binding name (Target 4) must be the same. Timeout is not use elsewhere and is an appropriate choice.

Target 5: CloseTimeout -
The following timeouts are available on WCF bindings: OpenTimeout, CloseTimeout, SendTimeout, and ReceiveTimeout.

Target 6: 03:00:00 -
3 hours, 0 minutes, and 0 seconds.

Target 7: WSHttpBinding -
Reference:
https://msdn.microsoft.com/en-us/library/hh924831(v=vs.110).aspx
