Exam AZ-300 topic 1 question 56 discussion

Actual exam question from Microsoft's AZ-300

Question #: 56
Topic #: 1

HOTSPOT -
You have an Azure subscription named Subscription1.
You have a virtualization environment that contains the virtualization servers in the following table.

The virtual machines are configured as shown in the following table.

All the virtual machines use basic disks. VM1 is protected by using BitLocker Drive Encryption (BitLocker).
You plan to use Azure Site Recovery to migrate the virtual machines to Azure.
Which virtual machines can you migrate? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Hot Area:

Show Suggested Answer

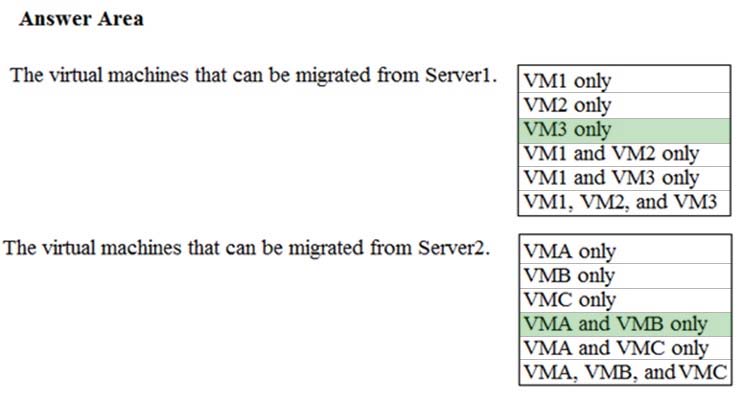

Suggested Answer:

Incorrect Answers:
VM1 cannot be migrates as it has BitLocker enabled.
VM2 cannot be migrates as the OS disk on VM2 is larger than 2TB.
VMC cannot be migrates as the Data disk on VMC is larger than 4TB.
References:
https://docs.microsoft.com/en-us/azure/site-recovery/hyper-v-azure-support-matrix#azure-vm-requirements

by Cern77 at Dec. 2, 2019, 6:05 p.m.

Comments

Submit Cancel

vik291

Highly Voted 5 years, 3 months ago

Server 2 must be VMA, VMB and VMC, considering 8TB is allowed for VmWare.

upvoted 15 times

Daren

5 years, 3 months ago

That`s true. But I`m not sure if this is something they added only recently (support for 8TB data disk VMware).

upvoted 3 times

...

Cern77

Highly Voted 5 years, 6 months ago

Same as Question53 https://azure.microsoft.com/en-us/updates/site-recovery-large-disks-8tb/

upvoted 7 times

Sweb

5 years, 4 months ago

Just to clarify, data disks up to 8TB are only supported for VM Ware, not for Hyper-V. Hyper-V is still limited to 4TB. https://docs.microsoft.com/en-us/azure/site-recovery/hyper-v-azure-support-matrix#azure-vm-requirements

upvoted 4 times

jcarlos

5 years, 4 months ago

So, from Server1 only VM3 and from Server2 VMA,VMB and VMC

upvoted 15 times

ipvaid

4 years, 9 months ago

VMC has data disk of 6TB and data disk more than 4Tb is not supported for HyperV. For VMware, data disk upto 8Tb are supported. So correct answer for Server 2 is VMA & VMB

upvoted 1 times

...

ChePunk

5 years, 3 months ago

@Cern77 This is not the same as Question 53, because the table 1 is different. But, I think the answer is correct though.

upvoted 2 times

...

rdy4u

4 years, 11 months ago

not the same question

upvoted 1 times

...

francisco91

4 years, 10 months ago

don't think so. #53 states that VM1,VM2,VM3 are VMware and NOT Hyper-V. Watch out for that.

upvoted 1 times

...

Load full discussion...

...

tashakori

Most Recent 1 year, 3 months ago

Given answer is correct

upvoted 1 times

...

Ziggybooboo

4 years, 9 months ago

In this question VM3 is a Gen 2 which cannot be migrated, could be a typo but the question does not make sense from that perspective,

upvoted 1 times

...

francisco91

4 years, 10 months ago

My answer is: - VM3 only - VMA, VMB and VMC, assuming that we're talking about Managed Disks (questions omits this) and the limit is now 8TB (4TB for Storage Account Replication) Source - https://docs.microsoft.com/en-us/azure/site-recovery/vmware-physical-azure-support-matrix#azure-vm-requirements

upvoted 6 times

magpi

4 years, 9 months ago

That's correct!

upvoted 1 times

...

RasiR

4 years, 5 months ago

But VMC also has a 500 GB OS Disk. It only supports up to 300 GB for generation 2 VMs. https://docs.microsoft.com/en-us/azure/site-recovery/hyper-v-azure-support-matrix#azure-vm-requirements

upvoted 1 times

RasiR

4 years, 5 months ago

No wait! VMC is in VMware so it will support up to 2 TB https://docs.microsoft.com/en-us/azure/site-recovery/vmware-physical-azure-support-matrix#azure-vm-requirements

upvoted 1 times

...

aurora21

4 years, 10 months ago

For VMWare Up to 8,192 GB when replicating to managed disks (9.26 version onwards) Up to 4,095 GB when replicating to storage accounts Since nothing specifically mentioned what does ASR typically use ?

upvoted 3 times

...

tundervirld

4 years, 11 months ago

The answer is Right. I did this Summary to this kind of questions. Summary Hyper-v and VMWare - OS Architecture Both 64 Bits, except WS2008 in Hyper-v - OS Disk Size Both up to 2TB, except VM G2 up to 300GB in Hyper-v - Data Disk Both up to 4TB, except replication MHDD up to 8TB in VMWare - Shared VHD Both not supported - FC disk Both not supported - BitLocker Both not supported - Hard disk format VHD, VHDX only in Hyper-v So: VM1 exclude, BitLocker enabled. VM2 exclude, it have 3TB of OS, up to 2TB. VMC exclude, it have Data Disk 6TB, up to 4TB.

upvoted 3 times

...

gboyega

4 years, 11 months ago

Given Answer is correct

upvoted 4 times

...

[Removed]

4 years, 11 months ago

Server1: VM1 - Can't be migrated because BitLocker is enabled VM2 - Can't be migrated because the OS disk is larger then the allowed 2048 GB for Generation 1 VMs (max. of 300 GB for gen 2) VM3 - Can be migrated Server2: VMA - Can be migrated VMB - Can be migrated VMC - Can't be migrated as data disk is larger then the allowed 4095 GB Source: https://docs.microsoft.com/en-us/azure/site-recovery/hyper-v-azure-support-matrix#azure-vm-requirements

upvoted 4 times

...

PTC

4 years, 11 months ago

Even though VM1 falls under 2TB (OS Disk) and 4TB (Data Disk) limitation, it has bitlocker enabled. So it can't be moved.

upvoted 1 times

...

Chokies

5 years ago

VMC does not meet the azure VM requirement. Data disk is only up to 4095GB https://docs.microsoft.com/en-us/azure/site-recovery/hyper-v-azure-support-matrix#azure-vm-requirements

upvoted 3 times

...
