Exam NS0-160 All Questions

View all questions & answers for the NS0-160 exam

Exam NS0-160 topic 1 question 18 discussion

Actual exam question from Netapp's NS0-160

Question #: 18
Topic #: 1

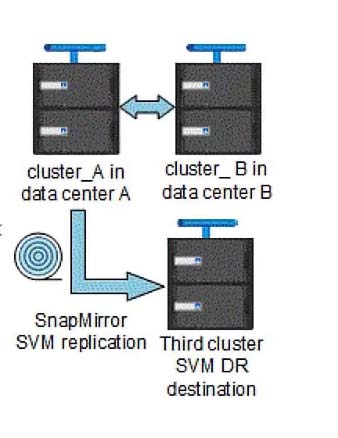

Click the Exhibit button.

Using ONTAP 9.5, you are operating with data protection across three sites. The cluster_A and cluster_B systems require synchronous replication. The SVMs on cluster_A also require asynchronous SVM-DR replication to a third site. All replication between all sites must also replicate the SVM configuration.
Referring to the exhibit, which replication technology is supported between cluster_A and cluster_B?

A. NetApp Data Availability Services
B. Snap Mirror Synchronous
C. MetroCluster IP
D. Foreign LUN Import

Show Suggested Answer

Suggested Answer: B 🗳️

by gino at Sept. 20, 2019, 12:50 p.m.

Comments

Submit Cancel

safodz

4 years, 3 months ago

You can get synchronous replication in Clustered ONTAP by using MetroCluster, but SnapMirror is asynchronous

upvoted 1 times

...

safodz

4 years, 3 months ago

You can get synchronous replication in Clustered ONTAP by using MetroCluster, but SnapMirror is asynchronous

upvoted 1 times

...

whoistheg

4 years, 9 months ago

BTW look here https://docs.netapp.com/ontap-9/index.jsp?topic=%2Fcom.netapp.doc.dot-mcc-inst-cnfg-ip%2FGUID-CD237311-D950-4D47-8280-9354C9020A06.html IT has the same picture

upvoted 1 times

...

whoistheg

4 years, 9 months ago

I agree with C. Metro cluster IP.. look at the question again.. it wants All replication between all sites must also replicate the SVM configuration.. The only way to replicate SVM configuration is SVM-DR and Metro-Cluster. Snapmirror Synchronous is at the volume level. So how would SVM configuration get across ?

upvoted 3 times

...

clevsef

4 years, 9 months ago

From MetroCluster IP The information, referred to as objects, that are replicated includes the cluster configuration and the storage virtual machine (SVM) configuration

upvoted 2 times

...

cMing

5 years, 1 month ago

ans is C SVM DR is not supported with Synchronous SnapMirror relationships. https://docs.netapp.com/ontap-9/index.jsp?topic=%2Fcom.netapp.doc.pow-dap%2FGUID-5080DA69-478E-40ED-87A8-CA506DD00C9D.html

upvoted 2 times

cMing

5 years, 1 month ago

One more link to support the answer. Refer to "2.2 Replication in MetroCluster IP", MetroCluster IP supports replicating SVM configuration. https://www.netapp.com/us/media/tr-4689.pdf

upvoted 1 times

...

jimmm

5 years, 1 month ago

B: https://docs.netapp.com/ontap-9/index.jsp?topic=%2Fcom.netapp.doc.pow-dap%2FGUID-983EDECC-A085-46DC-AF11-6FF9C474ABAE.html Replicating an entire SVM configuration You can use the -identity-preserve true option of the snapmirror create command to replicate an entire SVM configuration.

upvoted 1 times

...

010

5 years, 3 months ago

ans is B

upvoted 1 times

...

r3b0rnd4rth

5 years, 3 months ago

In fact it is B, cause as far as I understand you can use SM-S on SVM replication as well. And the third site can be ignored as it has a different peering.

upvoted 1 times

...

mattd

5 years, 4 months ago

They are only referencing sites A and B at the end of the question, including the SVM configuration. I would think only those sites would use B. Snap Mirror Synchronous

upvoted 4 times
