Exam 199-01 topic 2 question 60 discussion

Actual exam question from Riverbed's 199-01

Question #: 60
Topic #: 2

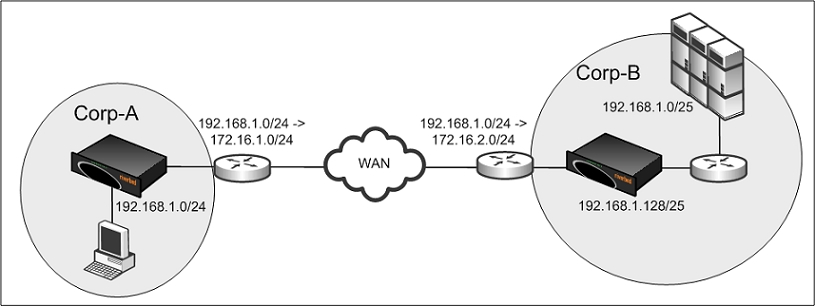

Refer to the exhibit.

Corp-A and Corp-B have overlapping address space and therefore the network administrator implemented NAT to overcome this. Users from Corp-A NAT to
172.16.1.0/24 and users from Corp-B NAT to 172.16.2.0/24. Users in Corp-A use the destination address of 172.16.2.0/24 to access the resources in Corp-B. The servers in Corp-B use the client IP for authentication. You deploy the Steelhead appliance using the default WAN visibility mode but noticed all the connections are passed-through. What is the likely problem?

A. When the Steelhead appliance in Corp-B opens the outer connection, it is using the source IP of 172.16.2.x instead of 192.168.1.x
B. On the Steelhead appliance in Corp-B, there is a missing static route for the 192.168.1.0/25 network
C. On the Steelhead appliance in Corp-A, there is a missing static route for the 172.16.2.0/24 network
D. When the Steelhead appliance in Corp-B opens the outer connection, it is using the source IP of 192.168.1.x instead of 172.16.1.x
E. None of the above

Show Suggested Answer

Suggested Answer: D 🗳️

by gemazyni at April 6, 2025, 1:29 a.m.
