Cisco 200-601 Exam Actual Questions

The questions for 200-601 were last updated at May 20, 2019.
  • Viewing page 1 out of 14 pages.
  • Viewing questions 1-5 out of 67 questions
Topic 1 - Single Topic
Question #1 Topic 1

Given the CIA triad elements, which ensures first that the data is encrypted and secure, second that the data is trustworthy, and third that the data is accessible by those who need it?

  • A. CIA
  • B. ICA
  • C. ACI
  • D. CAI
Reveal Solution Hide Solution   Discussion

Correct Answer: A

Question #2 Topic 1

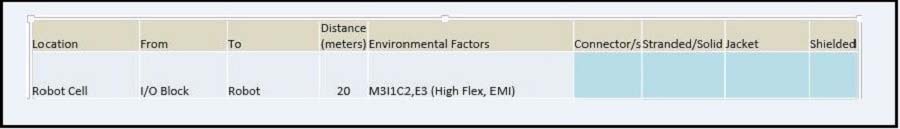

Refer to the exhibit. The Robot Cell is in a bottling plant. This cell environment needs to consider high flex, EMI, and possible exposure to moisture. Which physical media components need to be considered to prevent network degradation or interruptions?

  • A. Stranded, shielded wire with an industrial jacket and M12 connectors
  • B. Solid, unshielded commercial jacket wire, and M12 connectors
  • C. Stranded, unshielded wire with an industrial jacket, and commercial grade RJ45 connectors
  • D. Solid, shielded wire with commercial grade jacket, and commercial grade RJ45 connectors
Reveal Solution Hide Solution   Discussion

Correct Answer: A

Question #3 Topic 1

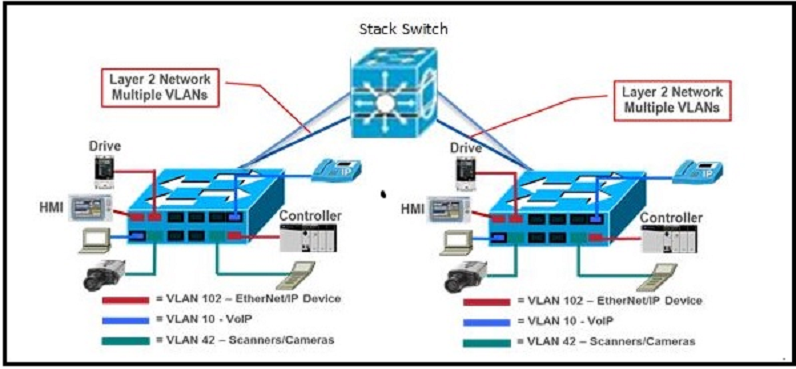

Refer to the exhibit. Which three elements would enable high availability and predictable performance for a motion control application spread across two switches
(with video and I/O traffic)? (Choose three)

  • A. Configure QoS to give PTP traffic the highest priority
  • B. Fiber optic uplinks
  • C. Redundant uplinks
  • D. Configure QoS to give I/O traffic the highest priority
  • E. Copper uplinks
  • F. Interconnect the two switches
Reveal Solution Hide Solution   Discussion

Correct Answer: ABC

Question #4 Topic 1

You have been tasked to design an Ethernet network capable of Motion control with cycle times not to exceed 1ms. In order to create a more deterministic network, what characteristic/s should you primarily focus on?

  • A. Lattency and Jitter
  • B. Redundancy and high availability
  • C. Explicit and Implicit messaging
  • D. This cycle time is not possible on an Ethernet network
  • E. Gigabit port speed
Reveal Solution Hide Solution   Discussion

Correct Answer: A

Question #5 Topic 1

Refer to the exhibit.

CIP Implicit messages from I/O#1 are being marked IP DSCP 47 by the endpoint and this marking is trusted by L2SW4. L2SW4 is configured to map DSCP 47 to output queue 1 threshold 1. You have received feedback that some of these messages are not being received. Executing the show mls interface GigabitEthernet statistics command on L2SW4 results in:

L2SW4# show mls interface GigabitEthernet 1/1 statistics
<output omitted>
output queues dropped:
queue: threshold1 threshold2 threshold3 queue 0 0 0 0 queue 1 309232345 450 0 queue 2 300 10 0 queue 3 91 0 0

Repeating this command results in the counters incrementing for queue 1 threshold 1. What are two options for reducing the packet loss on this interface while preserving the end-to-end DSCP marking? (Choose two)

  • A. Configure I/O#1 to mark this traffic with a different DSCP that is mapped to a less congested queue
  • B. Increase the buffer allocation for input queue 1
  • C. Increase the buffer allocation for output queue 1
  • D. Alter the service policy to police to a higher CIR
  • E. Change the egress queue map on L2SW4 to map this traffic to a less congested queue
Reveal Solution Hide Solution   Discussion

Correct Answer: CE
