Cisco 300-610 Exam Actual Questions

The questions for 300-610 were last updated on March 28, 2024.
  • Viewing page 1 out of 46 pages.
  • Viewing questions 1-5 out of 230 questions

Topic 1 - Single Topic

Question #1 Topic 1

What is an advantage of using OTV as compared to VPLS for data center redundancy?

  • A. prevents loops on point-to-point links
  • B. provides head-end replication
  • C. uses a proactive MAC advertisement
  • D. provides full-mesh connectivity
Reveal Solution Hide Solution   Discussion   11

Correct Answer: A 🗳️
Reference:
https://community.cisco.com/t5/data-center-documents/understanding-overlay-transport-virtualization-otv/ta-p/3151502#toc-hId-1043251551

Question #2 Topic 1

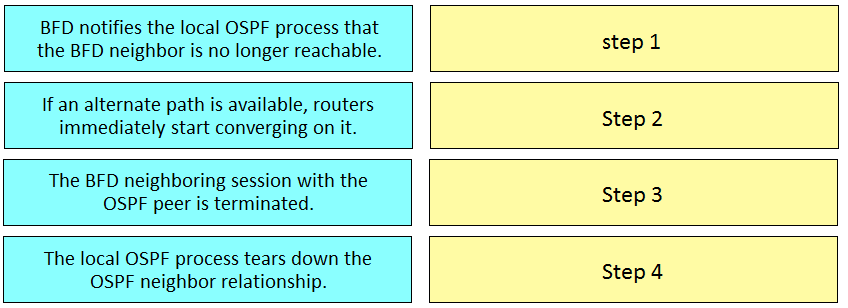

DRAG DROP -
A failure occurs on the network between two BFD and OSPF neighbors. Drag and drop the protocol actions from the left into the correct order on the right.
Select and Place:

Reveal Solution Hide Solution   Discussion   2

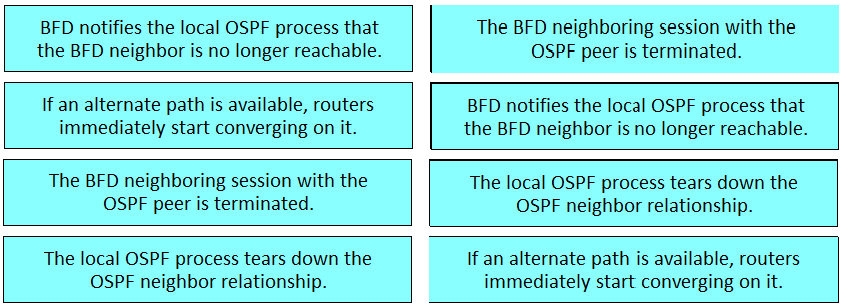

Correct Answer:
Reference:
https://www.cisco.com/c/en/us/td/docs/ios/12_0s/feature/guide/fs_bfd.html#wp1238898

Question #3 Topic 1

Which multicast rendezvous point redundancy mode is valid for Bidirectional PIM?

  • A. Embedded RP
  • B. Phantom RP
  • C. MSDP
  • D. PIM anycast RP
Reveal Solution Hide Solution   Discussion   6

Correct Answer: D 🗳️
Reference:
https://www.cisco.com/c/en/us/products/collateral/ios-nx-os-software/ip-multicast/whitepaper_c11-508498.html

Question #4 Topic 1

An engineer deploys LISP VM mobility. Which feature is configured on the interfaces that have VM mobility enabled?

  • A. IP redirects
  • B. flow control
  • C. proxy ARP
  • D. HSRP
Reveal Solution Hide Solution   Discussion   4

Correct Answer: C 🗳️
Reference:
https://www.cisco.com/c/en/us/td/docs/switches/datacenter/sw/nx-os/lisp/configuration/guide/b_NX-OS_LISP_Configuration_Guide/b_NX-
OS_LISP_Configuration_Guide_chapter_010.html

Question #5 Topic 1

What are two advantages of using Cisco vPC over traditional access layer designs? (Choose two.)

  • A. supports Layer 3 port channels
  • B. disables spanning-tree
  • C. no spanning-tree blocked ports
  • D. uses all available uplink bandwidth
  • E. maintains single control plane
Reveal Solution Hide Solution   Discussion   2

Correct Answer: CD 🗳️
Reference:
https://www.cisco.com/c/dam/en/us/td/docs/switches/datacenter/sw/design/vpc_design/vpc_best_practices_design_guide.pdf
