Cisco 300-615 Exam Actual Questions

The questions for 300-615 were last updated on June 10, 2024.
  • Viewing page 1 out of 43 pages.
  • Viewing questions 1-5 out of 213 questions

Topic 1 - Single Topic

Question #1 Topic 1

A vPC Type-1 inconsistency between two vPC peers in a VXLAN EVPN setup is discovered. Which two actions need to be attempted to resolve the issue?
(Choose two.)

  • A. Configure the NVE interfaces to be Up on both switches.
  • B. Set a different distributed gateway virtual MAC address.
  • C. Set a different secondary IP addresses on NVE source-interface.
  • D. Configure the same VNI to multicast group maping.
  • E. Set a different primary IP addresses on NVE source-interface.
Reveal Solution Hide Solution   Discussion   12

Correct Answer: AD 🗳️

Question #2 Topic 1

A mission-critical server is connected to site A. Connectivity to this server is lost from site B because the MAC route is missing in the OTV VDC of the Cisco Nexus
7000 in site B due to MAC aging. Which action allows the flooding of the unknown unicast MAC on the Nexus 7000 in the OTV VDC?

  • A. Use route map to statically advertise this MAC and redistribute with IS-IS.
  • B. Unknown unicast flooding is not allowed.
  • C. Use the otv flood mac <> command to selectively flood traffic for a given MAC.
  • D. Use the otv isis bfd <> command to configure BFD protocol.
Reveal Solution Hide Solution   Discussion   4

Correct Answer: B 🗳️

Question #3 Topic 1

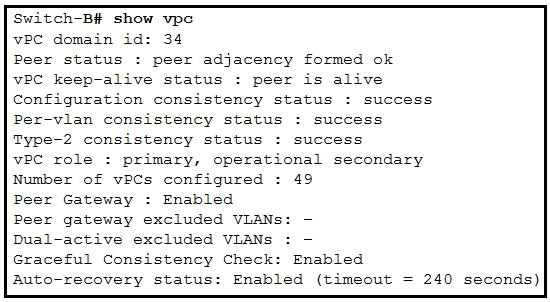

Refer to the exhibit. After a failover occurs, which two actions must be performed on Switch-B to manually preempt the operational primary role back to Switch-A?
(Choose two.)

  • A. Configure the local vPC role priority to have a lower value than Switch-A.
  • B. Configure the local vPC role priority to have a higher value than Switch-A.
  • C. Disable and then re-enable the vPC peer-keepalive link.
  • D. Configure the local vPC role priority to have the same value as Switch-A.
  • E. Disable and then re-enable the vPC peer link.
Reveal Solution Hide Solution   Discussion   1

Correct Answer: BE 🗳️

Question #4 Topic 1

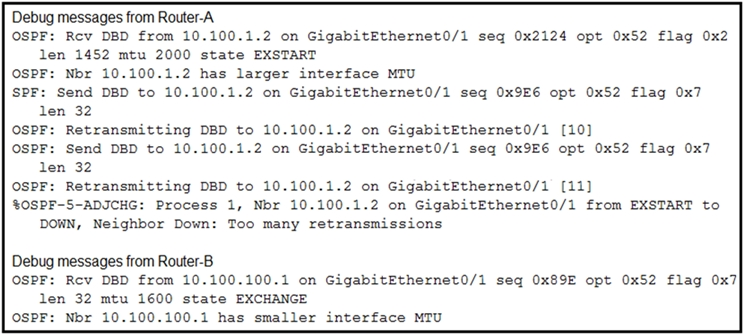

Refer to the exhibit. An OSPF adjacency between Router-A and Router-B fails to reach the FULL state. Which action resolves the issue?

  • A. Adjust the MTU on Router-A to 1600.
  • B. Disable the check of the MTU value.
  • C. Set the OSPF media type to point-to-point.
  • D. Adjust the MTU on Router-B to 1604.
Reveal Solution Hide Solution   Discussion   3

Correct Answer: B 🗳️

Question #5 Topic 1

The Cisco Nexus switch is connected to a peer switch that is not running Cisco NX-OS. The switches are connected using port channel and are experiencing packet loss. Which action should be performed on the Cisco Nexus switch ports to resolve this issue?

  • A. Turn on lacp suspend-individual.
  • B. Turn on lacp graceful-convergence.
  • C. Turn off lacp graceful-convergence.
  • D. Turn off lacp suspend-individual.
Reveal Solution Hide Solution   Discussion   7

Correct Answer: C 🗳️

Community vote distribution
A (35%)
C (25%)
B (20%)
Other
