Vendor:Cisco

Exam Code:352-001

Exam Name:CCDE Design Written

Exam Questions:253

Topic 1 - Single Topic

Question #1 Topic 1

A company plans to include Nonstop Forwarding and Bidirectional Forwarding Detection as a part of their network redundancy plan. In which two ways do NSF and BFD work together when different hardware platforms are compared? (Choose two.)

A. During supervisor engine or routing engine failover, the NSF feature will always ensure that the BFD at the peer router will not trigger a link down independent of the used hardware platform.
B. At some hardware platforms, BFD and NSF are not supported together. During supervisor engine or routing engine failover, the BFD at the peer router will trigger a link down.
C. To ensure that BFD at the peer router will not trigger a link down during NSF, the BFD packets must be processed fast enough, and, during supervisor engine or routing engine failover, by processing the BFD independent from the supervisor engine or routing engine.
D. Because BFD is always processed at the line cards (not at the supervisor engine or routing engine), a supervisor engine or routing engine failover will not affect the BFD peer router.
E. Because BFD is always processed at the supervisor engine or routing engine, a supervisor engine or routing engine failover will always trigger a link down at the peer router.

Reveal Solution Discussion 1

Correct Answer: BC 🗳️

Question #2 Topic 1

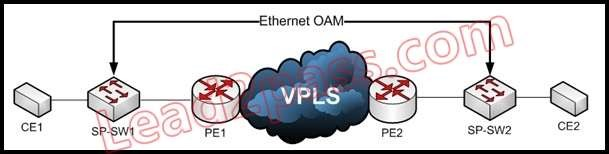

Refer to the exhibit. A service provider would like to use Ethernet OAM to detect end-to-end connectivity failures between SP-SW1 and SP-SW2. In which two of these ways can you design this solution? (Choose two.)

A. Enable Y.1731 Connectivity Fault Management on the SP switches.
B. E-LMI PDUs must be forwarded over VPLS.
C. Cisco Discovery Protocol PDUs must be forwarded over the VPLS.
D. Use upward maintenance endpoints on the SP switches.
E. Enable IEEE 802.1ag Connectivity Fault Management on the SP switches.

Reveal Solution Discussion 1

Correct Answer: DE 🗳️

Question #3 Topic 1

A network design shows two routers directly connected to an Ethernet switch using optical connections. There is an OSPF adjacency between the routers. In this design, which solution will ensure that interface down detection is reported as quickly as possible to the IGP?

A. optimized OSPF SPF timers
B. Bidirectional Forwarding Detection
C. automatic protection switching
D. optimized OSPF LSA timers
E. Ethernet OAM CFM monitoring

Reveal Solution Discussion

Correct Answer: B 🗳️

Question #4 Topic 1

A network designer is working with a company to improve convergence at the Layer 2 control plane and decides to use LACP. Which of these components does
LACP use to create the system ID?

A. LACP system priority and switch MAC address
B. LACP port priority and switch MAC address
C. LACP port priority and port number
D. LACP system priority and port number

Reveal Solution Discussion

Correct Answer: A 🗳️

Question #5 Topic 1

How are community formats sent in SNMPv1 and SNMPv2c?

A. In both protocols they are encrypted.
B. In both protocols they are sent as clear text.
C. In SNMPv1 they are sent as clear text and in SNMPv2c they are encrypted.
D. In SNMPv1 they are sent as clear text and in SNMPv2c they are sent as part of an encrypted session.

Reveal Solution Discussion

Correct Answer: B 🗳️

Viewing page 1 out of 51 pages.
