Cisco 640-875 Exam Actual Questions

The questions for 640-875 were last updated at Sept. 22, 2021.
  • Viewing page 1 out of 54 pages.
  • Viewing questions 1-5 out of 274 questions

Topic 1 - IP Networks

Question #1 Topic 1

What is the term that refers to a device that has no Customer Equipment directly connected to it in a Service Provider network?

  • A. Provider Edge Router
  • B. Customer Edge Router
  • C. Non-customer Edge Router
  • D. Provider Router
  • E. Provider Edge Provider Router
Reveal Solution Hide Solution   Discussion

Correct Answer: D

Question #2 Topic 1

DRAG DROP -

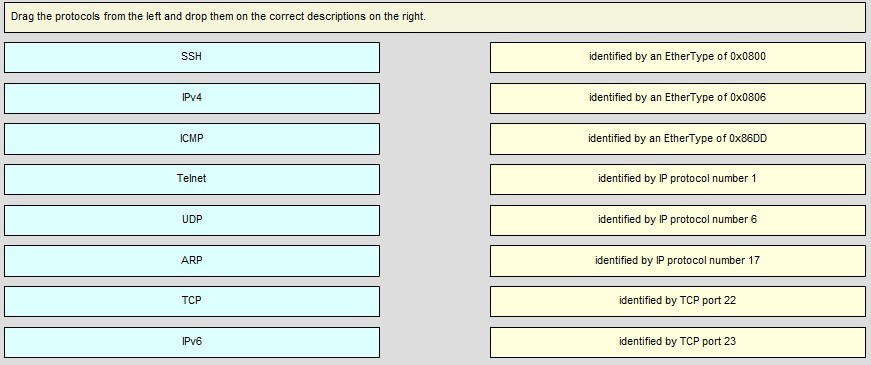

Drag the protocols from the left and drop them on the correct descriptions on the right.
Select and Place:

Reveal Solution Hide Solution   Discussion

Correct Answer:

Question #3 Topic 1

DRAG DROP -

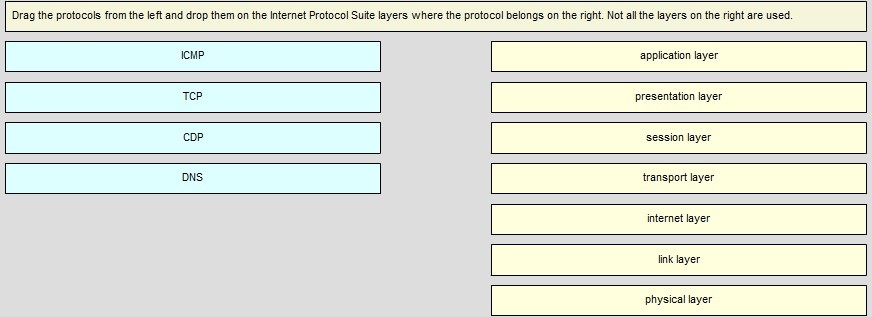

Drag the protocols from the left and drop them on the Internet Protocol Suite layers where the protocol belongs on the right. Not all the layers on the right are used.
Select and Place:

Reveal Solution Hide Solution   Discussion

Correct Answer:

Question #4 Topic 1

DRAG DROP -

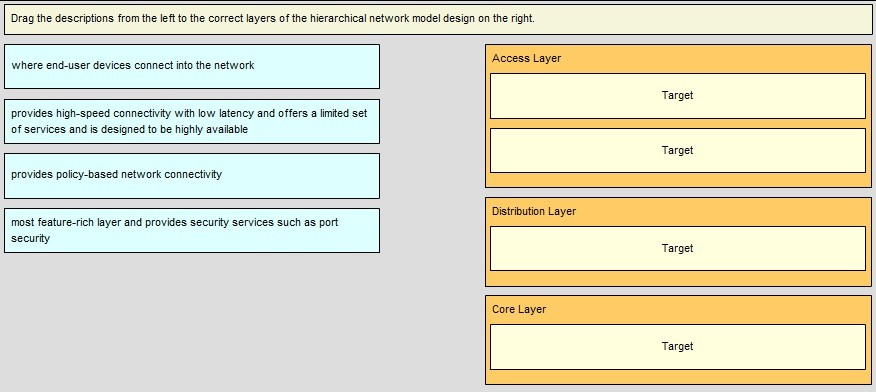

Drag the descriptions from the left to the correct layers of the hierarchical network model design on the right.
Select and Place:

Reveal Solution Hide Solution   Discussion

Correct Answer:

Question #5 Topic 1

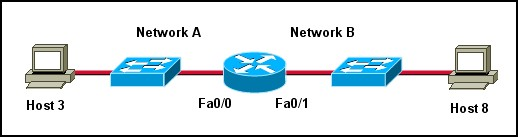

Refer to the exhibit.

Host 3 on Network A is sending data to Host 8 on Network B. Which address is the default gateway of Host 3?

  • A. The address of the switch interface that is connected to router interface Fa0/0
  • B. The address of the switch interface that is connected to router interface Fa0/1
  • C. The address of the host that is connected to Network A
  • D. The address of the host that is connected to Network B
  • E. The address of the router interface Fa0/0
  • F. The address of the router interface Fa0/1
Reveal Solution Hide Solution   Discussion

Correct Answer: E
