Fortinet NSE7_SDW-6.4 Exam Actual Questions

The questions for NSE7_SDW-6.4 were last updated on April 19, 2024.
  • Viewing page 1 out of 21 pages.
  • Viewing questions 1-4 out of 85 questions


Topic 1 - Single Topic

Question #1 Topic 1

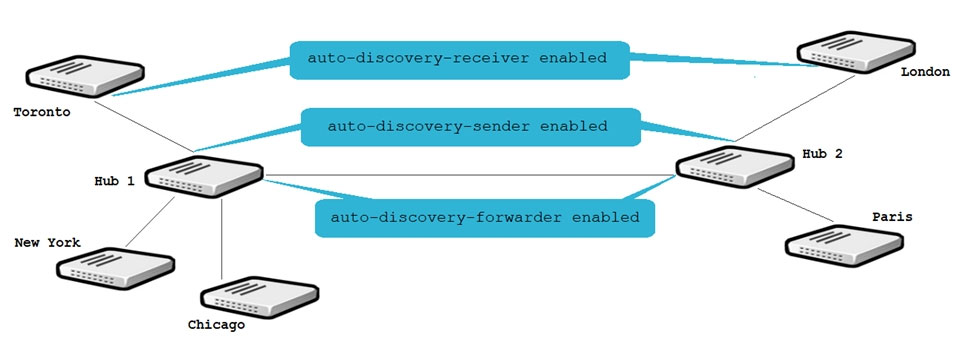

Refer to the exhibit.

Multiple IPsec VPNs are formed between two hub-and-spokes groups, and site-to-site between Hub 1 and Hub 2. The administrator configured ADVPN on the dual regions topology.
Which two statements are correct if a user in Toronto sends traffic to London? (Choose two.)

  • A. Toronto needs to establish a site-to-site tunnel with Hub 2 to bypass Hub 1.
  • B. The first packets from Toronto to London are routed through Hub 1 then to Hub 2.
  • C. London generates an IKE information message that contains the Toronto public IP address.
  • D. Traffic from Toronto to London triggers the dynamic negotiation of a direct site-to-site VPN.
Reveal Solution Hide Solution   Discussion   9

Correct Answer: AD 🗳️
Reference:
https://docs.fortinet.com/document/fortigate/6.0.0/handbook/320160/example-advpn-configuration

Question #2 Topic 1

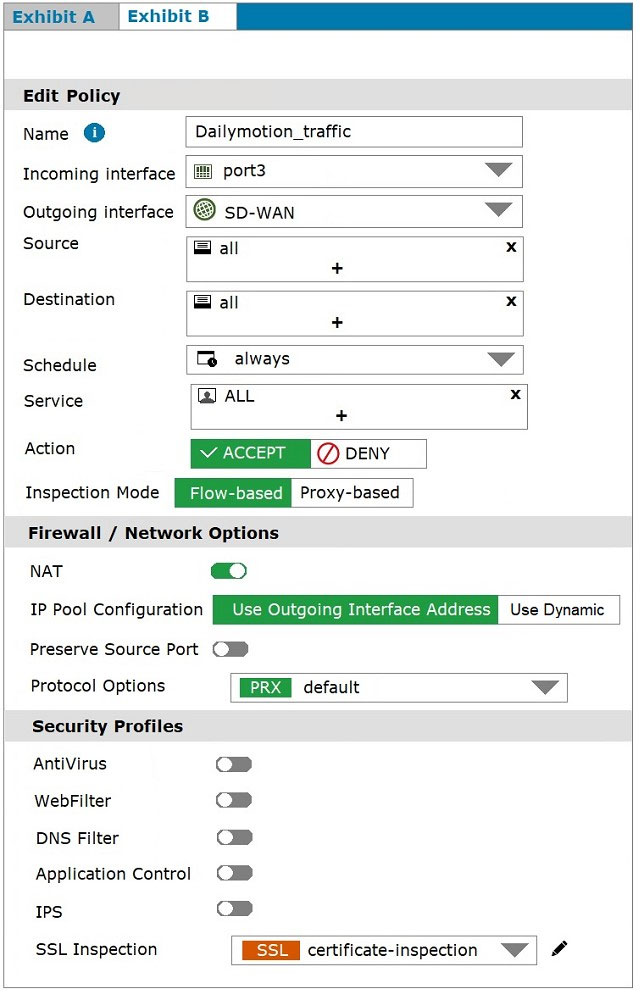

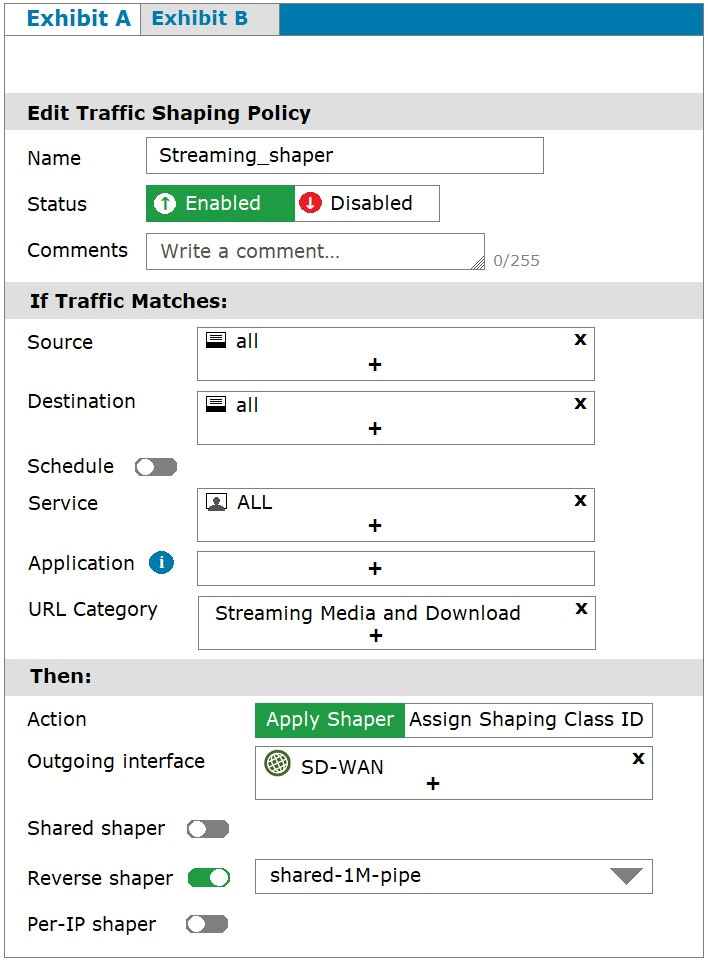

Refer to exhibits.


Exhibit A shows the traffic shaping policy and exhibit B shows the firewall policy.
FortiGate is not performing traffic shaping as expected, based on the policies shown in the exhibits.
To correct this traffic shaping issue on FortiGate, what configuration change must be made on which policy?

  • A. The URL category must be specified on the traffic shaping policy.
  • B. The shaper mode must be applied per-IP shaper on the traffic shaping policy.
  • C. The web filter profile must be enabled on the firewall policy.
  • D. The application control profile must be enabled on the firewall policy.
Reveal Solution Hide Solution   Discussion   7

Correct Answer: C 🗳️

Question #3 Topic 1

Which statement defines how a per-IP traffic shaper of 10 Mbps is applied to the entire network?

  • A. The 10 Mbps bandwidth is shared equally among the IP addresses.
  • B. Each IP is guaranteed a minimum 10 Mbps of bandwidth.
  • C. FortiGate allocates each IP address a maximum 10 Mbps of bandwidth.
  • D. A single user uses the allocated bandwidth divided by total number of users.
Reveal Solution Hide Solution   Discussion   6

Correct Answer: C 🗳️
Reference:
https://docs.fortinet.com/document/fortigate/6.2.0/cookbook/885253/per-ip-traffic-shaper

Question #4 Topic 1

Which three parameters are available to configure SD-WAN rules? (Choose three.)

  • A. Application signatures
  • B. URL categories
  • C. Internet service database (ISDB) address object
  • D. Source and destination IP address
  • E. Type of physical link connection
Reveal Solution Hide Solution   Discussion   9

Correct Answer: CDE 🗳️
