HP HP0-Y52 Exam Actual Questions

The questions for HP0-Y52 were last updated on April 15, 2024.
  • Viewing page 1 out of 29 pages.
  • Viewing questions 1-4 out of 122 questions


Topic 1 - Single Topic

Question #1 Topic 1

An HP Comware switch should send messages to an SNMP server when various events occur. What is one step in the configuration of this feature?

  • A. Enable SSH on the switch, and create a user account to match settings on the SNMP server.
  • B. Set the SNMPv2 read-write community string to match the string on the SNMP server.
  • C. Enable logging to the console globally.
  • D. Specify an SNMP trap server with the SNMP server IP address and community string.
Reveal Solution Hide Solution   Discussion

Correct Answer: D 🗳️

Question #2 Topic 1

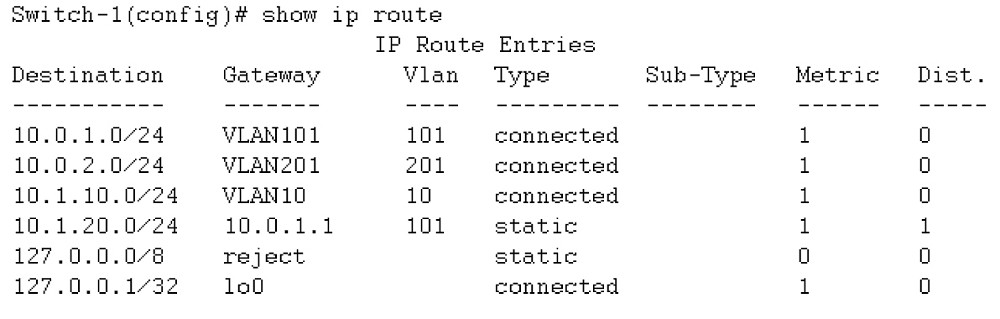

Exhibit1.


Exhibit 2 -

A network administrator wants to create a backup IP route to 10.1.20.0/24 on Switch-1. The backup route should use Link 2, and it should only be used if Link 1 is down. What is the correct setup to accomplish this?

  • A. an IP route through 10.0.2.2 with administrative distance 1
  • B. an IP route through 10.1.20.1 with administrative distance 1
  • C. an IP route through 10.0.2.2 with administrative distance 10
  • D. an IP route through 10.1.20.1 with administrative distance 10
Reveal Solution Hide Solution   Discussion

Correct Answer: D 🗳️

Question #3 Topic 1

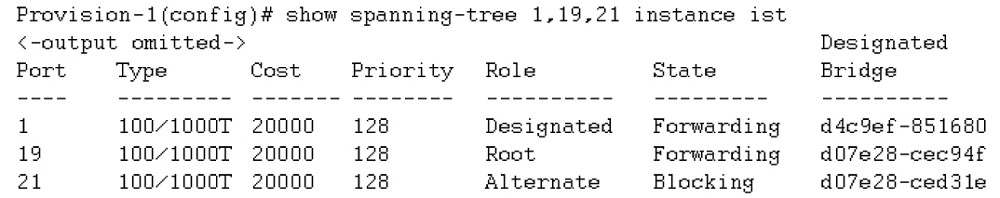

Refer to the exhibit.

This switch currently assigns all VLANs to Multiple Spanning Tree Protocol (MSTP) instance 0 or the Internal Spanning Tree (IST). Which statement correctly describes interface 21?

  • A. The interface is down at Layer 2; it is not available for sending or receiving any traffic.
  • B. The interface is an edge port but has received Bridge Protocol Data Units (BPDUs), so it is disabled.
  • C. The interface does not forward or accept data traffic, but it is ready to start forwarding if interface 19 fails.
  • D. The interface does not support spanning tree; it is possible that it will introduce a loop in the network.
Reveal Solution Hide Solution   Discussion

Correct Answer: B 🗳️

Question #4 Topic 1

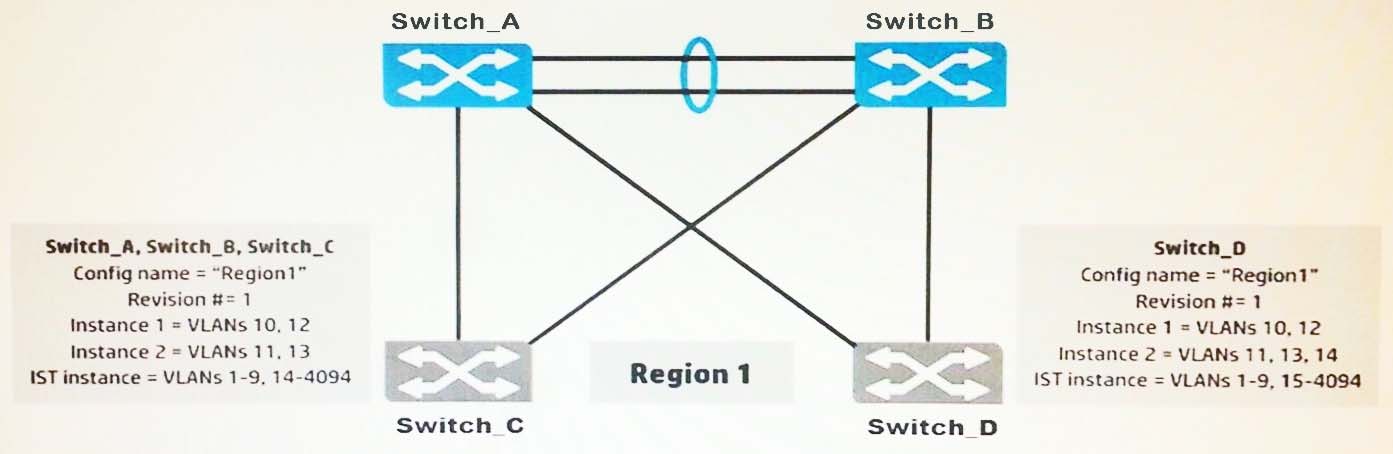

Refer to the Exhibit.

Originally, all four switches had the same region configuration. VLAN 14 was added to Switch_D and then mapped to instance 2. How does this affect the Multiple
Spanning Tree Protocol (MSTP) topology?

  • A. Load sharing is lost; one of the uplinks is blocked for all traffic on Switch_D.
  • B. All connectivity is lost; both uplinks are blocked on Switch_D.
  • C. A Layer 2 loop exists and will cause sporadic connectivity issues.
  • D. Load sharing is lost; one of the uplinks is blocked for all traffic on Switch_C and Switch_D.
Reveal Solution Hide Solution   Discussion

Correct Answer: B 🗳️
