HP HP2-Z34 Exam Actual Questions

The questions for HP2-Z34 were last updated on April 22, 2024.
  • Viewing page 1 out of 15 pages.
  • Viewing questions 1-4 out of 66 questions


Topic 1 - Single Topic

Question #1 Topic 1

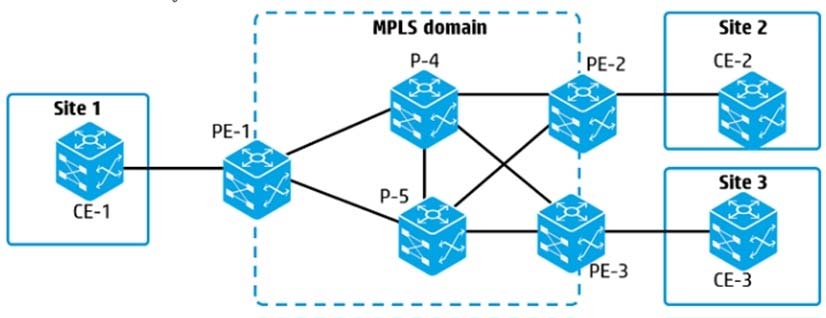

Refer to the exhibit -

An MPLS VPLS solution (non-hierarchical) will connect the sites shown in the exhibit Which pseudo wire (PW) connections must the administrator configure?

  • A. A full mesh of PWs between every PE router that connects to a site and every P router between them
  • B. A hub-and-spoke set of PWs between one P router and all PE routers that connect to a site
  • C. A full mesh of PWs between every PE router that connects to a site
  • D. A hub-and-spoke set of PWs between one PE router and other PE routers that connect to a site
Reveal Solution Hide Solution   Discussion

Correct Answer: D 🗳️

Question #2 Topic 1

An administrator is configuring an HP switch to run SPBM. Which Spanning Tree Protocol (STP) configuration is required?

  • A. Disable STP.
  • B. Ensure that the switch with the lowest IS-IS router ID has the lowest bridge priority.
  • C. Set the spanning tree mode to ECT.
  • D. Map all B-VLANs to MSTP instance 4092
Reveal Solution Hide Solution   Discussion

Correct Answer: D 🗳️

Question #3 Topic 1

An administrator creates two VPN instances on an HP Comware switch, in addition to the public instance. The switch implements routing protocols and MPLS.
Which statement is correct about the routing tables and Label Forwarding Information Bases (LFIBs) maintained by the switch?

  • A. The switch uses a single routing table and maintains a separate LFIB for each VPN instance
  • B. The switch maintains a separate routing table and LFIB for each VPN instance, but the public tables automatically include entries from the other instances.
  • C. The switch maintains a separate routing table and LFIB for each VPN instance.
  • D. The switch maintains a separate routing table for each VPN instance and uses a single LFIB
Reveal Solution Hide Solution   Discussion

Correct Answer: D 🗳️
Reference:
http://www.h3c.com/portal/Technical_Support___Documents/Technical_Documents/Security_Products/H3C_SecPath_F1000-E/Configuration/
Operation_Manual/H3C_SecPath_High-End_OM(F3169_F3207)-5PW106/06/201109/725907_1285_0.htm
(VPN instance, second para)

Question #4 Topic 1

An HP Comware switch uses the MDC feature and has two MDCs defined. Administrators want MDC 1 and MDC 2 to be able to exchange traffic. How should the administrators complete the configuration?

  • A. Create a virtual port with the same name on MDC 1 and MDC 2.
  • B. Create a virtual port on MDC 0 and tag that port for the MDC 1 and MDC 2 management VLANs
  • C. Connect a physical port that belongs to MDC 1 to a physical port that belongs to MDC 2
  • D. Configure MDC 0 to permit data exchange and add a backplane mapping between MDC 1 and MDC 2.
Reveal Solution Hide Solution   Discussion

Correct Answer: A 🗳️
