HPE6-A45 Exam - Free Actual Q&As, Page 1

HPE6-A45 Actual Exam Questions

Last updated on Nov. 28, 2024.

Vendor:HP

Exam Code:HPE6-A45

Exam Name:Implementing Aruba Campus Switching solutions

Exam Questions:173

Topic 1 - Single Topic

Question #1 Topic 1

Refer to the exhibit.

AOS-Switches will enforce 802.1X authentication on edge ports. The company has two RADIUS servers, which are meant to provide redundancy and load sharing of requests. The exhibit shows the planned RADIUS settings to deploy to the switches.
What should customers understand about this plan?

A. AOS switches do not support two RADIUS servers for redundancy, instead, a secondary authentication method is required.
B. Dynamic authentication is only permitted on one of the RADIUS servers and must be removed from the other.
C. Each RADIUS server must use a unique port number for the authentication and dynamic authorization port.
D. Each AOS-Switch will send all RADIUS requests to the first server on the list unless that server becomes unreachable.

Reveal Solution Discussion

Correct Answer: D 🗳️

Question #2 Topic 1

An administrator wants to ensure that an AOS-Switch forwards all traffic that it receives on interface 1 with high priority.
- Switches should also communicate the high priority to other switches across the traffic path.
- The switch has type of service disabled.
- The administrator plans to apply 802.1p priority 5 to interface 1.
What should the administrator check to ensure that the configuration will work properly?

A. Interface 1 receives traffic with a tag.
B. The AOS-Switch is configured to use eight queues.
C. The forwarding path for the traffic uses VLAN tags.
D. An 802.1p-to-DSCP map exists for priority 5.

Reveal Solution Discussion

Correct Answer: A 🗳️

Question #3 Topic 1

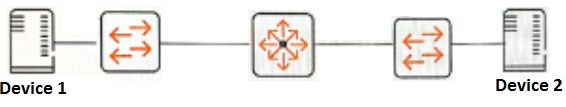

Refer to the exhibit.

A network administrator sets up prioritization for an application that runs between Device 1 and Device 2. However, the QoS for the application is not what the administrator expects.
How can the administrator check if the network infrastructure prioritizes traffic from Device 1 and Device 2?

A. Run a packet capture on Device 2, run the application, and look in the packet capture for a high value DSCP in the IP header.
B. Set up RMON alarms on the switches that trigger when a high number of packets are dropped. Then, run the application and check for the alarm.
C. Clear interface statistics on the switches. Then, run the application and check the interface queue statistics for the switch-to-switch links.
D. Run a packet capture on Device 1, run the application, and look in the packet capture for a high value DSCP in the IP header.

Reveal Solution Discussion 5

Correct Answer: A 🗳️

Question #4 Topic 1

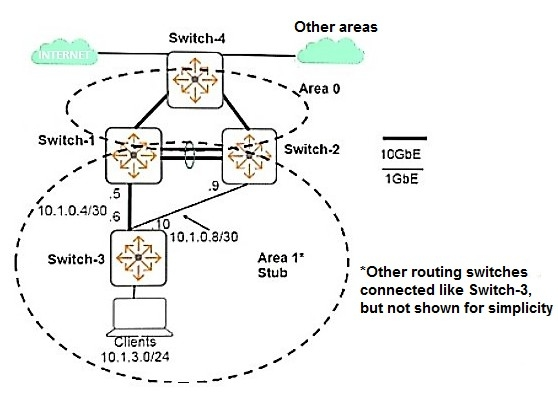

Refer to the exhibits.
Exhibit 1.

Exhibit 2.

The exhibits show the current operational state for routes on Switch-3. The company wants Switch-3 to prefer the link to Switch-1 over the link to Switch-2 for all intra-area, inter-area, and external traffic.
What can the network administrator do to achieve this goal?
