Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.
After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.
You have two servers that run Windows Server 2016.
You plan to create a Network Load Balancing (NLB) cluster that will contain both servers.
You need to configure the network cards on the servers for the planned NLB configuration.
Solution: You configure the network cards to be on the same subnet and to have static IP addresses. You configure the cluster to use multicast.
Does this meet the goal?

Correct Answer: A 🗳️
Following are the hardware requirements to run an NLB cluster.
✑ All hosts in the cluster must reside on the same subnet.
✑ There is no restriction on the number of network adapters on each host, and different hosts can have a different number of adapters.
✑ Within each cluster, all network adapters must be either multicast or unicast. NLB does not support a mixed environment of multicast and unicast within a single cluster.
✑ If you use the unicast mode, the network adapter that is used to handle client-to-cluster traffic must support changing its media access control (MAC) address.
Following are the software requirements to run an NLB cluster.
✑ Only TCP/IP can be used on the adapter for which NLB is enabled on each host. Do not add any other protocols (for example, IPX) to this adapter.
✑ The IP addresses of the servers in the cluster must be static.
References:
https://technet.microsoft.com/en-us/windows-server-docs/networking/technologies/network-load-balancing

Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.
After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.
You have two servers that run Windows Server 2016.
You plan to create a Network Load Balancing (NLB) cluster that will contain both servers.
You need to configure the network cards on the servers for the planned NLB configuration.
Solution: You configure the network cards to be on the same subnet and to have dynamic IP addresses. You configure the cluster to use multicast.
Does this meet the goal?

Correct Answer: B 🗳️
Following are the hardware requirements to run an NLB cluster.
✑ All hosts in the cluster must reside on the same subnet.
✑ There is no restriction on the number of network adapters on each host, and different hosts can have a different number of adapters.
✑ Within each cluster, all network adapters must be either multicast or unicast. NLB does not support a mixed environment of multicast and unicast within a single cluster.
✑ If you use the unicast mode, the network adapter that is used to handle client-to-cluster traffic must support changing its media access control (MAC) address.
Following are the software requirements to run an NLB cluster.
✑ Only TCP/IP can be used on the adapter for which NLB is enabled on each host. Do not add any other protocols (for example, IPX) to this adapter.
✑ The IP addresses of the servers in the cluster must be static.
References:
https://technet.microsoft.com/en-us/windows-server-docs/networking/technologies/network-load-balancing

Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.
After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.
You have two servers that run Windows Server 2016.
You plan to create a Network Load Balancing (NLB) cluster that will contain both servers.
You need to configure the network cards on the servers for the planned NLB configuration.
Solution: You configure the network cards to be on the same subnet and to have static IP addresses. You configure the cluster to use unicast.
Does this meet the goal?

Correct Answer: A 🗳️
Following are the hardware requirements to run an NLB cluster.
✑ All hosts in the cluster must reside on the same subnet.
✑ There is no restriction on the number of network adapters on each host, and different hosts can have a different number of adapters.
✑ Within each cluster, all network adapters must be either multicast or unicast. NLB does not support a mixed environment of multicast and unicast within a single cluster.
✑ If you use the unicast mode, the network adapter that is used to handle client-to-cluster traffic must support changing its media access control (MAC) address.
Following are the software requirements to run an NLB cluster.
✑ Only TCP/IP can be used on the adapter for which NLB is enabled on each host. Do not add any other protocols (for example, IPX) to this adapter.
✑ The IP addresses of the servers in the cluster must be static.
References:
https://technet.microsoft.com/en-us/windows-server-docs/networking/technologies/network-load-balancing

Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.
After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.
You are a server administrator at a company named Contoso, Ltd.

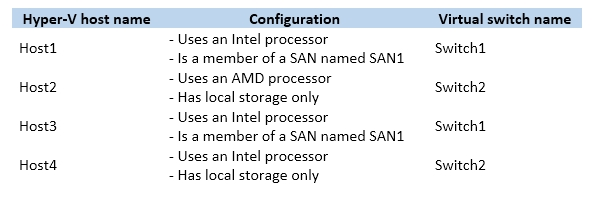

Contoso has a Windows Server 2016 Hyper-V environment configured as shown in the following table.

All of the virtual switches are of the external type.
You need to ensure that you can move virtual machines between the hosts without causing the virtual machines to disconnect from the network.
Solution: You implement live migration by using Host3 and Host4.
Does this meet the goal?

Correct Answer: A 🗳️

Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.
After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.
You are a server administrator at a company named Contoso, Ltd.
Contoso has a Windows Server 2016 Hyper-V environment configured as shown in the following table.

All of the virtual switches are of the external type.
You need to ensure that you can move virtual machines between the hosts without causing the virtual machines to disconnect from the network.
Solution: You implement live migration by using Host1 and Host2.
Does this meet the goal?

Correct Answer: B 🗳️
