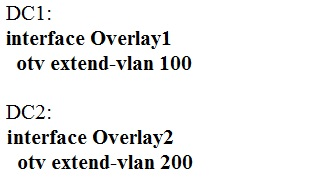

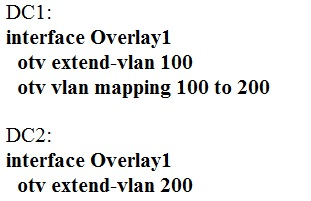

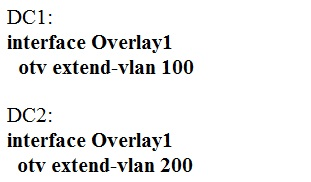

Host1 is in VLAN100 located in DataCenter1 and Host2 is in VLAN200 located in DataCenter2. Which OTV VLAN mapping configuration allows Layer 2 connectivity between these two hosts? A. B. C. D.
Suggested Answer:B
You can map a VLAN on the local site to a VLAN with a different VLAN ID on the remote site. When you map two VLANs with different VLAN IDs across sites, they get mapped to a common VLAN called the transport VLAN. For example, when you map VLAN 1 on Site A to VLAN 2 on Site B, both VLANs are mapped to a transport VLAN. All traffic originating from VLAN 1 on Site A is translated as going from the transport VLAN. All traffic arriving at Site B from the transport VLAN is translated to VLAN 2. Reference: https://www.cisco.com/c/en/us/support/docs/switches/nexus-7000-series-switches/200998-Nexus-7000-OTV-VLAN-Mapping-on-Overlay.html? dtid=osscdc000283
B is correct, no need to map vlan at B site.
https://www.cisco.com/c/en/us/support/docs/switches/nexus-7000-series-switches/200998-Nexus-7000-OTV-VLAN-Mapping-on-Overlay.html?dtid=osscdc000283
B is the correct answers
please refer the link :https://www.cisco.com/c/en/us/support/docs/switches/nexus-7000-series-switches/200998-Nexus-7000-OTV-VLAN-Mapping-on-Overlay.htm
isn't it B ? - maps the extended VLAN to the local VLAN
upvoted 1 times
...
