Exam 300-115 topic 5 question 355 discussion

Actual exam question from Cisco's 300-115
Question #: 355
Topic #: 5
[All 300-115 Questions]

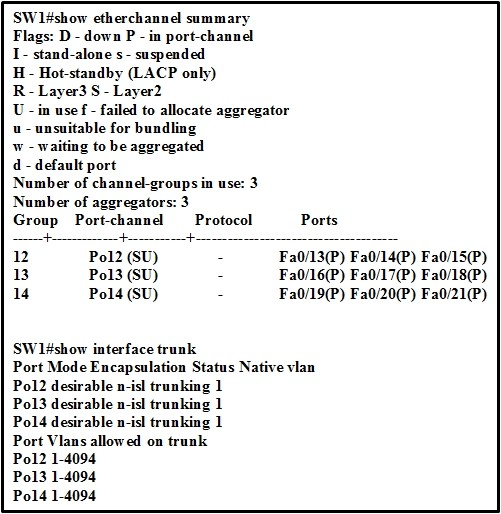

Refer to the exhibit.

Which EtherChannel negotiation protocol is configured on the interface f0/13 f0/15?

  • A. Link Combination Control Protocol
  • B. Port Aggregation Protocol
  • C. Port Combination Protocol
  • D. Link Aggregation Control Protocol
Show Suggested Answer Hide Answer
Suggested Answer: Explanation 🗳️
PAgP modes are off, auto, desirable, and on. Only the combinations auto-desirable, desirable- desirable, and on-on will allow a channel to be formed. .
1. on: PAgP will not run. The channel is forced to come up.
2. off: PAgP will not run. The channel is forced to remain down.
3. auto: PAgP is running passively. The formation of a channel is desired; however, it is not initiated.
4. desirable: PAgP is running actively. The formation of a channel is desired and ini- tiated.
The Link Aggregate Control Protocol (LACP) trunking supports four modes of operation:
On: The link aggregation is forced to be formed without any LACP negotiation .In other words, the switch neither sends the LACP packet nor processes any
inbound LACP packet. This is similar to the on state for PAgP.
Off: The link aggregation is not formed. We do not send or understand the LACP packet.

This is similar to the off state for PAgP.

Passive: The switch does not initiate the channel but does understand inbound LACP packets. The peer (in active state) initiates negotiation (when it sends out
an LACP packet) which we receive and answer, eventually to form the aggregation channel with the peer. This is similar to the auto mode in PAgP.
Active: We can form an aggregate link and initiate the negotiation. The link aggregate is formed if the other end runs in LACP active or passive mode. This is
similar to the desir- able mode of PAgP.
In this example, we see that fa 0/13, fa0/14, and fa0/15 are all in Port Channel 12, which is operating in desirable mode, which is only a PAgP mode.
by aadeeb at Aug. 4, 2019, 9:57 p.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
aadeeb
5 years, 10 months ago
Answer is B
upvoted 2 times
...
