Exam 300-115 topic 4 question 239 discussion

Actual exam question from Cisco's 300-115

Question #: 239
Topic #: 4

[All 300-115 Questions]

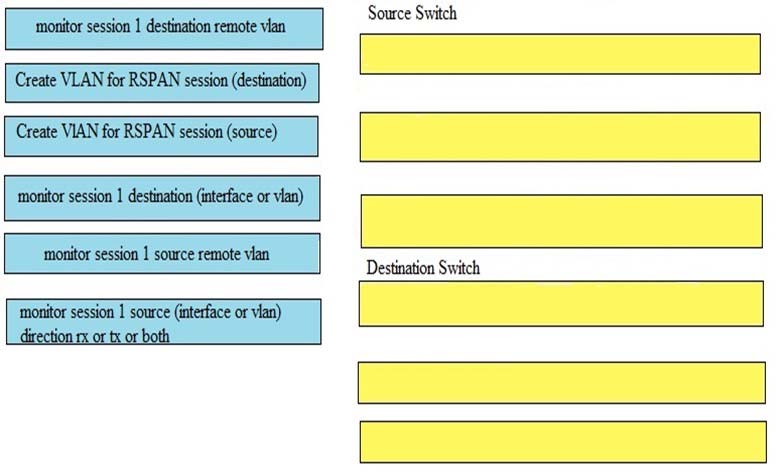

DRAG DROP -
Select and Place:
Select and Place:

Show Suggested Answer

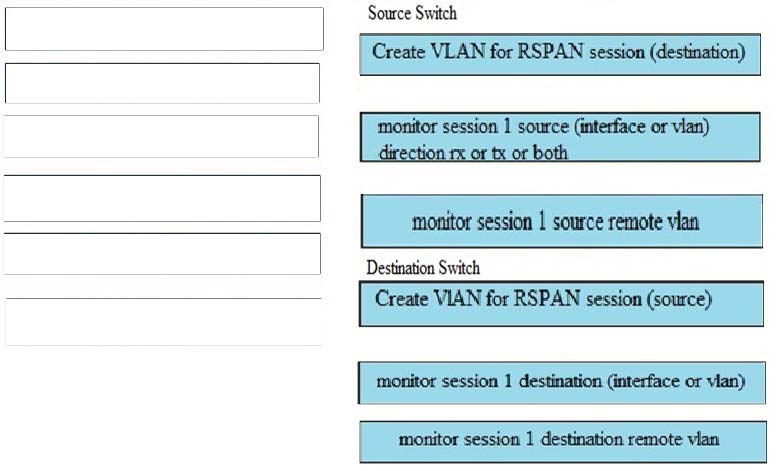

Suggested Answer:

by DimS at Aug. 26, 2019, 10:50 a.m.

Comments

Submit Cancel

DimS

5 years, 10 months ago

I suppose answer should be: On the source switch 1. create destination VLAN for RSPAN 2. monitor session 1 source (int or VLAN) direct rx | tx | both 3. monitor session 1 destination remote vlan On the destination switch: 1. create VLAN for RSPAN (source) 2. monitor session 1 source remote vlan 3. monitor session 1 destination int | VLAN

upvoted 3 times

james

5 years, 9 months ago

I agree with 2 and 3 for each, but why should 1. be that way around and not as below? On the source switch 1. create destination VLAN for RSPAN (source) 2. monitor session 1 source (int or VLAN) direct rx | tx | both 3. monitor session 1 destination remote vlan On the destination switch: 1. create VLAN for RSPAN (destination) 2. monitor session 1 source remote vlan 3. monitor session 1 destination int | VLAN

upvoted 4 times

networkchimp

5 years, 8 months ago

Agree with this.

upvoted 1 times

...

DimS

5 years, 7 months ago

Explain: https://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst2960/software/release/12-2_40_se/configuration/guide/scg/swspan.pdf?dtid=osscdc000283 There's a some misunderstanding. )) I mean the same.

upvoted 2 times

...
