Exam 300-115 topic 5 question 200 discussion

Actual exam question from Cisco's 300-115
Question #: 200
Topic #: 5
[All 300-115 Questions]

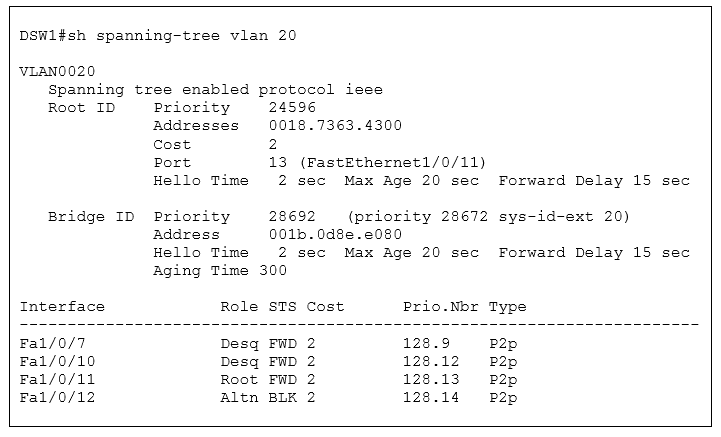

Refer the exhibit. Which two statements about the spanning-tree operation of this switch are true? (Choose two.)

  • A. The spanning-tree mode stp ieee command was entered on this switch
  • B. The spanning-tree operation mode for this switch is PVST.
  • C. The switch is operating in the default cisco spanning-tree mode.
  • D. The spanning-tree operation mode for this switch is IEEE/
  • E. the spanning-tree operation mode for this switch is PVST+.
Show Suggested Answer Hide Answer
Suggested Answer: BC 🗳️
by DimS at Aug. 28, 2019, 3:13 p.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
IgorLVG
1 year ago
CE is the answer. PVST+ is the deault for cisco
upvoted 1 times
...
ReikiDude
5 years, 3 months ago
Beginning from Cisco IOS 15.2(4)E release, the STP default mode is Rapid PVST+
upvoted 1 times
...
CiscoNinja
5 years, 3 months ago
C E - B doesn't make any sense
upvoted 2 times
...
yeti1
5 years, 4 months ago
PVST+ is the default on cisco. You'll likely never see PVST in action. Two things essentially differentialte PVST from PVST+ 1 - PVST+ runs an extra instance without a vlan tag thus providing backwards compatibility with the IEEE802.1 standard implementetation. 2 - PVST only supports ISL trunking.
upvoted 1 times
...
Bastex
5 years, 5 months ago
I agree with DimS: answers are C E
upvoted 2 times
...
DimS
5 years, 8 months ago
Why is B not E? PVST+—This spanning-tree mode is based on the IEEE 802.1D standard and Cisco proprietary extensions. It is the default spanning-tree mode used on all Ethernet port-based VLANs. The PVST+ runs on each VLAN on the switch up to the maximum supported, ensuring that each has a loop-free path through the network. https://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst2960/software/release/12-2_52_se/configuration/guide/2960scg/swstp.pdf
upvoted 2 times
...
DimS
5 years, 8 months ago
Why is B not E?
upvoted 2 times
...
Community vote distribution
A (35%)
C (25%)
B (20%)
