Suggested Answer:A
In this case, the port has been configured both as a trunk and as a switchport in data vlan 10. Obviously, a port can not be both, so even though Cisco IOS will accept both, the port will actually be used as a trunk, ignoring the switchport access VLAN 10 command.
Correct answer is A.

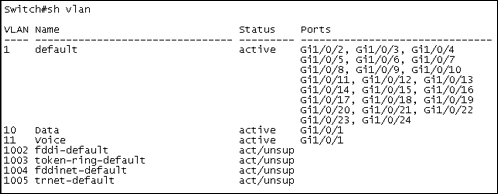

With the configuration shown, answer B will appear IF Gig1/0/1 is in a down state. In this question, Gig1/0/1 must be in an "up, line protocol is up (connected)" state, making A the correct answer. I verified the both results in a test lab environment.
Although the interface is configured in trunk mode and the correct explanation, the right answer is B. See the example below using a Catalyst 3550:
!
interface FastEthernet0/10
switchport access vlan 10
switchport trunk encapsulation dot1q
switchport mode trunk
switchport voice vlan 11
spanning-tree portfast
!
VLAN Name Status Ports
---- -------------------------------- --------- -------------------------------
1 default active Fa0/5, Fa0/6, Fa0/7, Fa0/8, Fa0/9, Fa0/11, Fa0/12, Fa0/13, Fa0/14, Fa0/16
Fa0/17, Fa0/18, Fa0/19, Fa0/20, Fa0/21, Fa0/22, Fa0/23, Gi0/1, Gi0/2
10 Data active Fa0/10
11 Voice active Fa0/10
upvoted 2 times
...
