Exam 300-115 topic 1 question 89 discussion

Actual exam question from Cisco's 300-115

Question #: 89
Topic #: 1

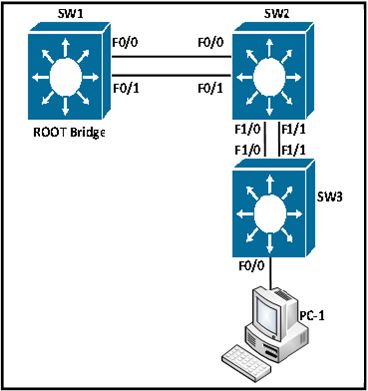

Refer to the exhibit.
f1/0 and f1/1 have the same end-to-end path cost to the designated bridge. Which action is needed to modify the Layer 2 spanning-tree network so that traffic for
PC1 VLAN from switch SW3 uses switchport f1/1 as a primary port?

A. Modify the spanning-tree port-priority on SW1 f1/1 to 0 and f1/0 to 16.
B. Modify the spanning-tree port-priority on SW1 f1/1 to 16 and f1/0 to 0.
C. Modify the spanning-tree port-priority on SW2 f1/1 to 0 and f1/0 to 16.
D. Modify the spanning-tree port-priority on SW2 f1/1 to 16 and f1/0 to 0.

Show Suggested Answer

Suggested Answer: C 🗳️
If a loop occurs, STP considers port priority when selecting a LAN port to put into the forwarding state. You can assign higher priority values to LAN ports that you want STP to select first and lower priority values to LAN ports that you want STP to select last. If all LAN ports have the same priority value, STP puts the LAN port with the lowest LAN port number in the forwarding state and blocks other LAN ports. The possible priority range is 0 through 240 (default 128), configurable in increments of 16. A lower path cost represents higher-speed transmission and is preferred.
Reference: http://www.cisco.com/en/US/docs/switches/lan/catalyst2950/software/release/12.1_9_ea1/configuration/guide/swstp.html#wp1105354

by DimS at Sept. 16, 2019, 2:29 p.m.

Comments

Submit Cancel

DimS

5 years, 9 months ago

For priority, the range is 0 to 240, in increments of 16; the default is 128. Valid values are 0, 16, 32, 48, 64, 80, 96, 112, 128, 144, 160, 176, 192, 208, 224, and 240. All other values are rejected. The lower the number, the higher the priority. https://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst2960/software/release/12-2_52_se/configuration/guide/2960scg/swstp.pdf

upvoted 1 times

...
