Exam 350-601 topic 1 question 34 discussion

Actual exam question from Cisco's 350-601
Question #: 34
Topic #: 1
[All 350-601 Questions]

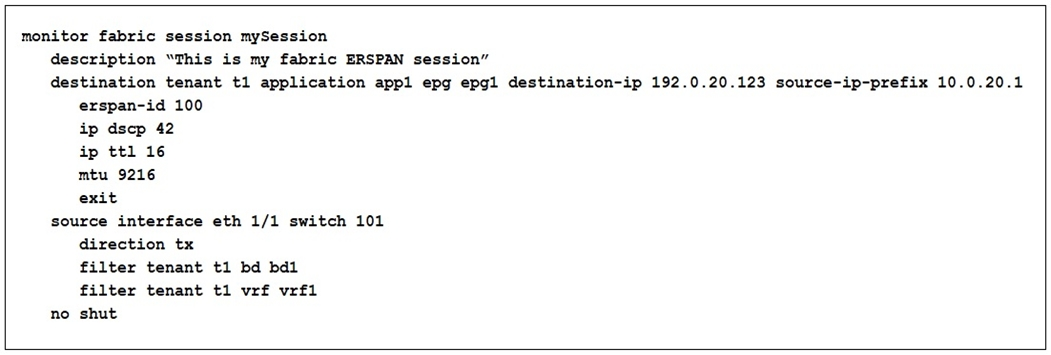

Refer to the exhibit. An engineer needs to implement a monitoring session that should meet the following requirements:
✑ Monitor traffic from leaf to leaf switches on a Cisco ACI network
✑ Support filtering traffic from Bridge Domain or VRF
Which configuration must be added to meet these requirements?

  • A. interface eth 1/2 leaf 101
  • B. application epg epg1 app1
  • C. interface eth 1/2 switch 101
  • D. application app1 epg epg1
Show Suggested Answer Hide Answer
Suggested Answer: D 🗳️
by Daeh at May 29, 2021, 1:52 p.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
malkovitch
Highly Voted 3 years, 8 months ago
It's correct (D) but the answer is incomplete. The full command is "filter tenant t1 application app1 epg epg1" and it needs to be added under "source interface eth 1/1 switch 101"
upvoted 12 times
Valkyrie17
3 years, 8 months ago
Thanks, it makes much more sense now.
upvoted 2 times
...
...
Annyue26
Most Recent 2 weeks, 2 days ago
Selected Answer: D
monitor access session mySession description 'This is my access ERSPAN session' source interface ethernet 1/1 leaf 321 direction tx filter tenant DTS application General-AP epg APP1-EPG exit destination tenant DTS application General-AP epg APP1-EPG destination-ip 192.2.20.123 source-ip-prefix 10. 0.20.1 ip dscp 42 ip ttl 16 erspan-id 100 mtu 9216 exit exit
upvoted 1 times
...
memelas
7 months, 2 weeks ago
Question makes no sense. ERSPAN can be configured as Access, Fabric or Tenant. Fabric ERSPAN configuration does not require appplication app1 epg egp1. Access ERSPAN configuration however requires filter tenant tenant-name application application-name epg epg-name. https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/4-x/cli-configuration/Cisco-APIC-NX-OS-Style-CLI-Configuration-Guide-401/Cisco-APIC-NX-OS-Style-CLI-Configuration-Guide-401_chapter_010100.html#task_E4E78972BA924CE19DB08421CA117B88
upvoted 1 times
...
GuyThatTakesDumps
2 years, 7 months ago
Selected Answer: D
D is correct
upvoted 2 times
...
eddyedwards257
3 years, 6 months ago
filter tenant t1 application app1 epg epg1 is the complete command
upvoted 2 times
...
Community vote distribution
A (35%)
C (25%)
B (20%)
