Exam 350-601 topic 1 question 182 discussion

Actual exam question from Cisco's 350-601
Question #: 182
Topic #: 1
[All 350-601 Questions]

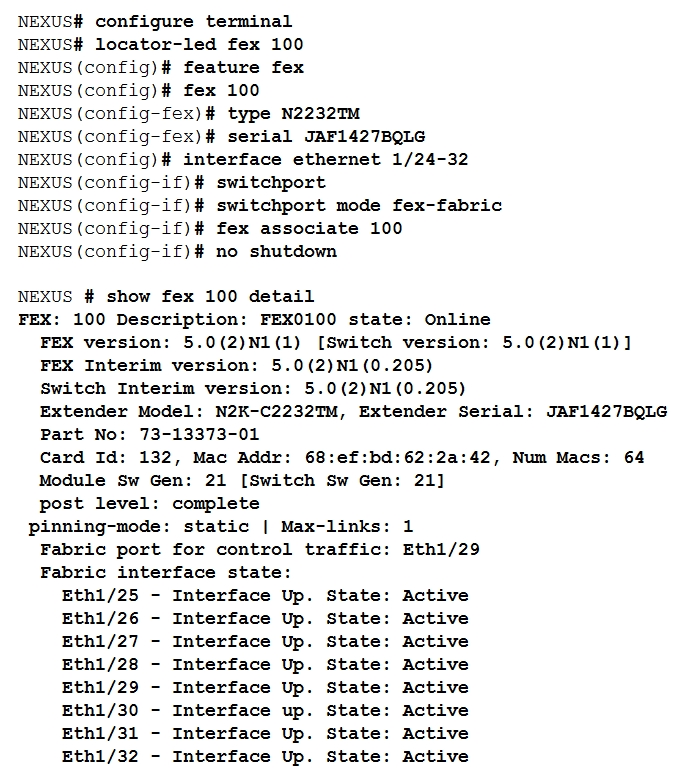

Refer to the exhibit. An engineer must distribute all the host ports to use all eight configured FEX uplinks. The solution must minimize disruption if an uplink fails.
Which action accomplishes this objective?

  • A. Set the pinning max-links value to 8
  • B. Configure the eight uplinks in a port channel
  • C. Change the supported FEX type
  • D. Statically assign each host interface to a fabric uplink
Show Suggested Answer Hide Answer
Suggested Answer: B 🗳️
A fabric interface that fails in the port channel does not trigger a change to the host interfaces. Traffic is automatically redistributed across the remaining links in the port channel fabric interface. If all links in the fabric port channel go down, all host interfaces on the FEX are set to the down state.
Reference:
https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus2000/sw/configuration/guide/ b_Cisco_Nexus_2000_Series_Fabric_Extender_Software_Configuration_Guide_Release_4_2/ b_Cisco_Nexus_2000_Series_Fabric_Extender_Software_Configuration_Guide_Release_4_2_chapter_011.html
by mauchi at May 14, 2022, 2:23 p.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
GuyThatTakesDumps
8 months ago
Selected Answer: B
B is the answer
upvoted 1 times
...
cypher9
12 months ago
A fabric interface that fails in the port channel does not trigger a change to the host interfaces. Traffic is automatically redistributed across the remaining links in the port channel fabric interface. If all links in the fabric port channel go down, all host interfaces on the FEX are set to the down state.
upvoted 2 times
...
mauchi
1 year ago
Selected Answer: B
I think it should be D, Traffic disruption should be minimized when an uplink fails. If pinning was used and an uplink failed, then traffic associated with the failed link would be disrupted until it could be re-routed. Using a port-channel is much less disruptive.
upvoted 1 times
mauchi
1 year ago
I meant B
upvoted 1 times
...
...
Community vote distribution
A (35%)
C (25%)
B (20%)
