Exam 300-115 topic 1 question 104 discussion

Actual exam question from Cisco's 300-115

Question #: 104
Topic #: 1

Instructions -
✑ Enter IOS commands on the device to verify network operation and answer the multiple-choice questions.
✑ THIS TASK DOES NOT REQUIRE DEVICE CONFIGURATION.

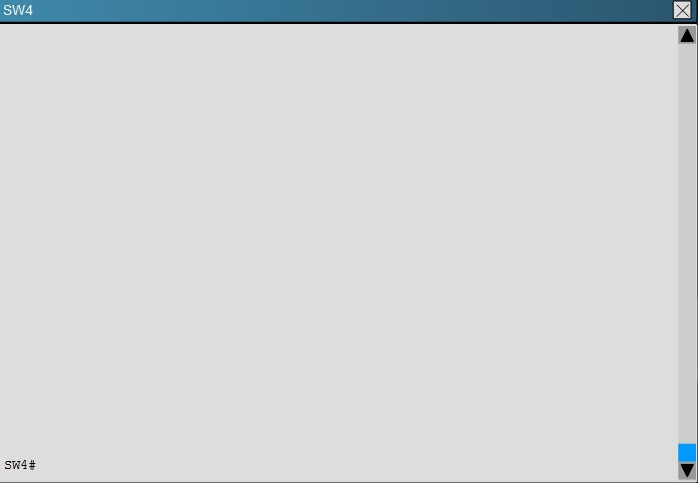

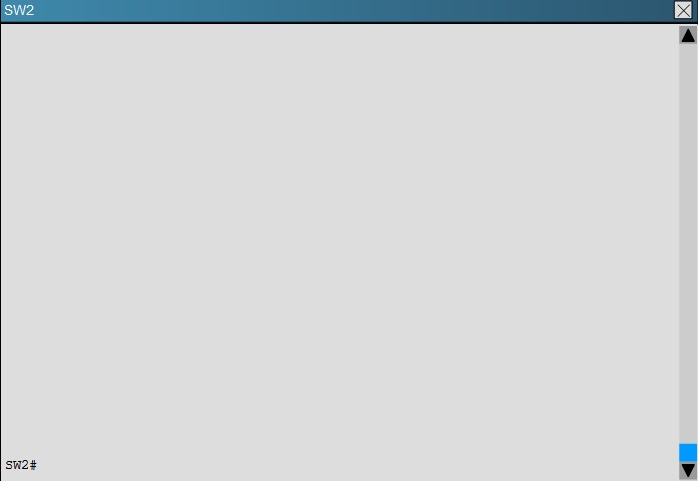

✑ Click on SW1, SW2, New_Switch or SW4 to gain access to the consoles of these devices. No console or enable passwords are required.
✑ To access the multiple-choice questions, click on the numbered boxes on the left of the top panel.
✑ There are four multiple-choice questions with this task. Be sure to answer all four questions before selecting the Next button

Scenario -
You have been asked to install and configure a new switch in a customer network. Use the console access to the existing and new switches to configure and verify correct device configuration.

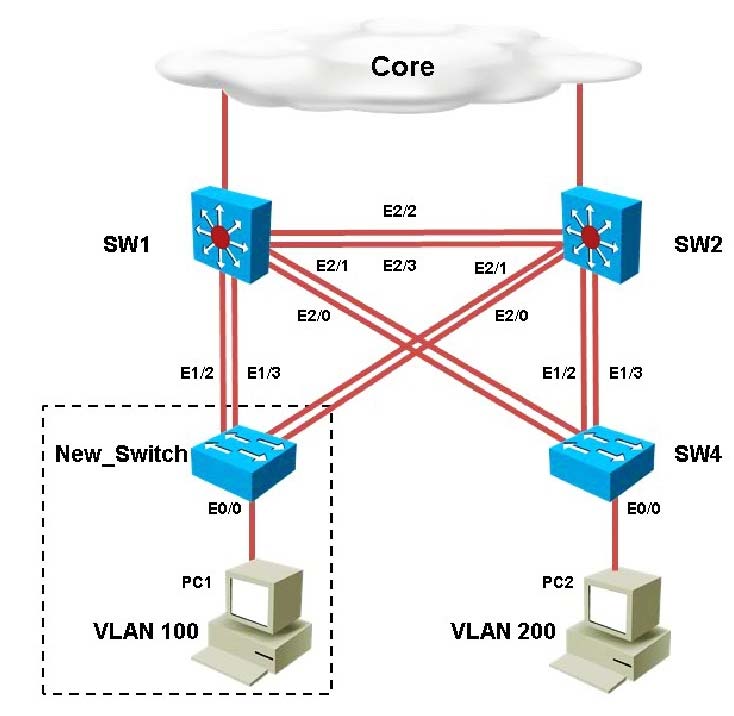

Topology -

Examine the VTP configuration. You are required to configure private VLANs for a new server deployment connecting to the SW4 switch. Which of the following configuration steps will allow creating private VLANs?

A. Disable VTP pruning on SW1 only
B. Disable VTP pruning on SW2 only
C. Disable VTP pruning on SW4 only
D. Disable VTP pruning on SW2, SW4 and New_Switch
E. Disable VTP pruning on New_Switch and SW4 only.

Show Suggested Answer

Suggested Answer: C 🗳️
To create private VLANs, you will need to only disable pruning on the switch that contains the private VLANs. In this case, only SW4 will connect to servers in a private VLAN.

by Bastex at Nov. 7, 2019, 1:12 p.m.

Comments

Submit Cancel

Sidney

5 years, 7 months ago

To configure private VLAN we have to change VTP (even version 3) to Transparent mode. Infact, to disable VTP pruning on Sw4 (in Client mode) we also have to change to VTP Transparent mode so answer C can be understood as “change SW4 to Transparent mode” so itis the best choice.

upvoted 2 times

...

Bastex

5 years, 7 months ago

I think correct answer is A. We know that SW1 and SW2 are in server mode, SW4 - in client mode. SW1 is primary server. We can not create VLANs on switch in client mode at all, but only on primary server. When I attempt create private vlans in my lab on primary server I received: %Private VLANs can only be configured when VTP is in transparent/off modes in VTP version 1 or 2 and in server/transparent/off modes in VTP version 3 when pruning is turned off So we must configure private vlans on SW1 previosly disabling pruning on it.

upvoted 1 times

...
