Exam 350-601 topic 1 question 303 discussion

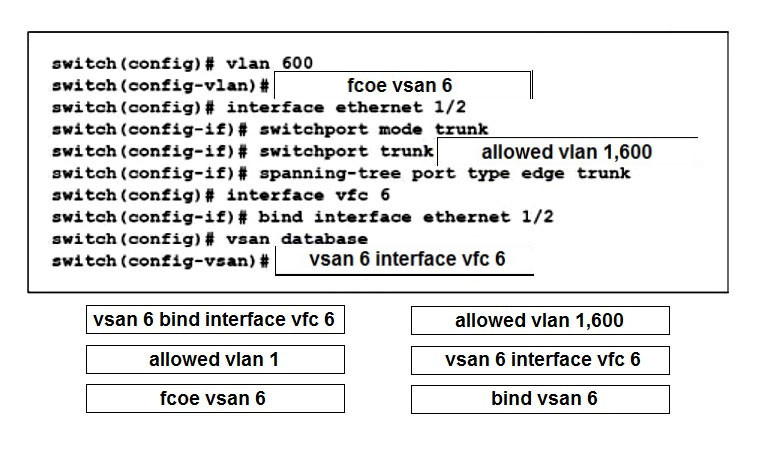

The answer is correct. Example:Mapping VSANs to VLANs The following example shows how to configure the FCoE VLAN and a virtual Fibre Channel interface: Step 1 Enable the associated VLAN and map the VLAN to a VSAN. switch(config)# vlan 200 switch(config-vlan)# fcoe vsan 200 switch(config-vlan)# exit Step 2 Configure the VLAN on a physical Ethernet interface. switch# configure terminal switch(config)# interface ethernet 1/4 switch(config-if)# spanning-tree port type edge trunk switch(config-if)# switchport mode trunk switch(config-if)# switchport trunk allowed vlan 1,200 switch(config-if)# exit Step 3 Create a virtual Fibre Channel interface and bind it to a physical Ethernet interface. switch(config)# interface vfc 4 switch(config-if)# bind interface ethernet 1/4 By default, all virtual Fibre Channel interfaces reside on VSAN 1. If the VLAN to VSAN mapping is to a VSAN other than VSAN 1, then proceed to Step 4. Note Step 4 Associate the virtual Fibre Channel interface to the VSAN. switch(config)# vsan database switch(config-vsan)# vsan 200 interface vfc 4 switch(config-vsan)# exit
