Exam 350-601 topic 1 question 204 discussion

Actual exam question from Cisco's 350-601
Question #: 204
Topic #: 1
[All 350-601 Questions]

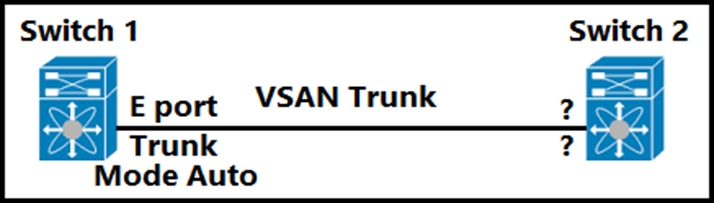

Refer to the exhibit. Which feature set must be used to configure on switch 2 to establish a VSAN trunk between switch 1 and switch 2?
A.
✑ F Port
✑ Trunk Mode Passive
B.
✑ N Port
✑ Trunk Mode Active
C.
✑ NP Port
✑ Trunk Mode Auto
D.
✑ E Port
✑ Trunk Mode On

Show Suggested Answer Hide Answer
Suggested Answer: D

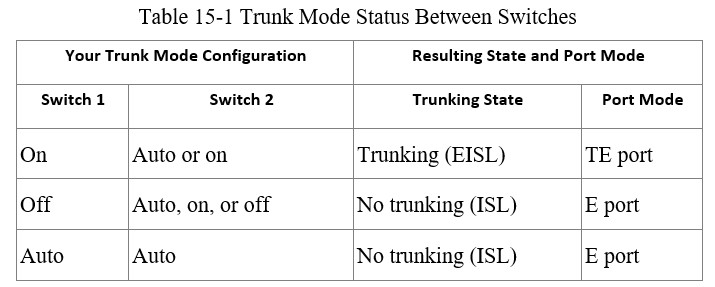

By default, trunk mode is enabled in all Fibre Channel interfaces. However, trunk mode configuration takes effect only in E-port mode. You can configure trunk mode as on (enabled), off (disabled), or auto (automatic). The default trunk mode is on. The trunk mode configuration at the two ends of an ISL, between two switches, determine the trunking state of the link and the port modes at both ends (see Table 15-1).

Reference:
https://www.cisco.com/en/US/docs/storage/san_switches/mds9000/sw/rel_3_x/configuration/guides/cli_3_2/trnk.html
by GuyThatTakesDumps at Sept. 26, 2022, 5:40 p.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
GuyThatTakesDumps
8 months ago
E port!
upvoted 1 times
GuyThatTakesDumps
8 months ago
option D
upvoted 1 times
...
...
Community vote distribution
A (35%)
C (25%)
B (20%)
Other
