Exam 300-115 topic 5 question 244 discussion

Actual exam question from Cisco's 300-115
Question #: 244
Topic #: 5
[All 300-115 Questions]

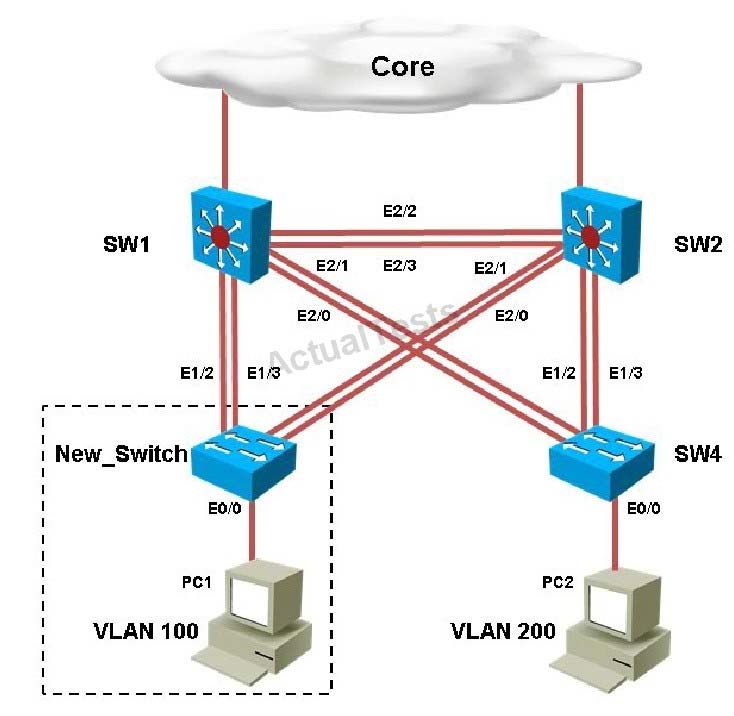

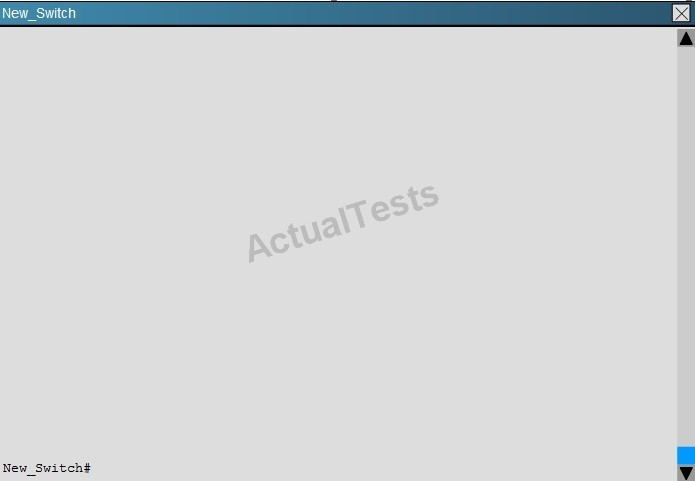

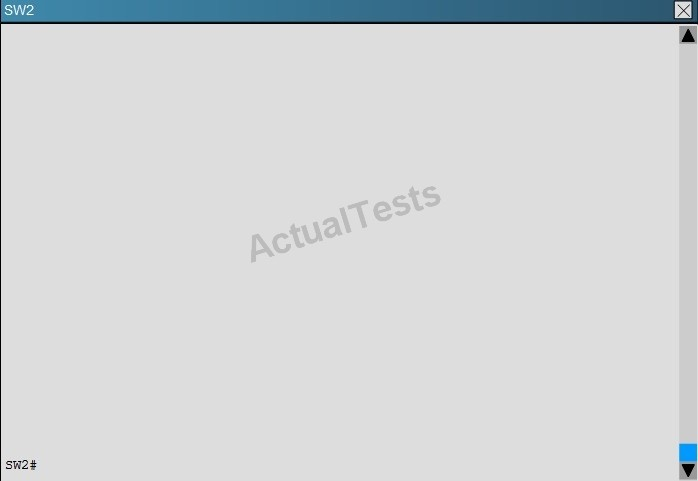

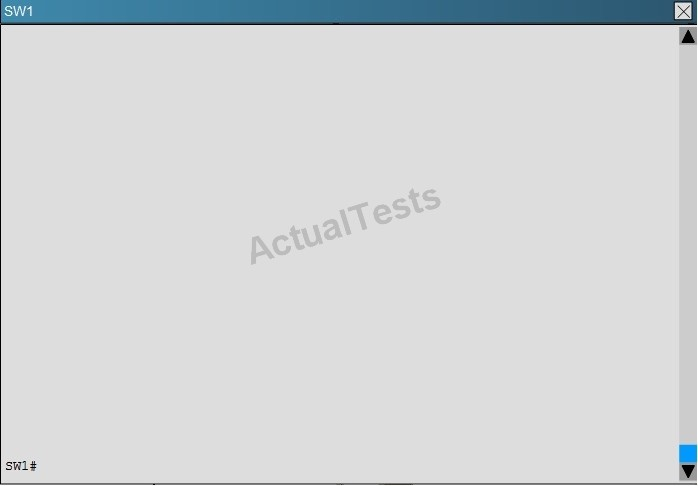

You have been asked to install and configure a new switch in a customer network. Use the console access to the existing and new switches to configure and verify correct device configuration.





You are adding new VLANs. VLAN500 and VLAN600 to the topology in such way that you need to configure SW1 as primary root for VLAN 500 and secondary for
VLAN 600 and SW2 as primary root for VLAN 600 and secondary for VLAN 500. Which configuration step is valid?

  • A. Configure VLAN 500 & VLAN 600 on both SW1 & SW2
  • B. Configure VLAN 500 and VLAN 600 on SW1 only
  • C. Configure VLAN 500 and VLAN 600 on SW2 only
  • D. Configure VLAN 500 and VLAN 600 on SW1 ,SW2 and SW4
  • E. On SW2; configure vtp mode as off and configure VLAN 500 and VLAN 600; configure back to vtp server mode.
Show Suggested Answer Hide Answer
Suggested Answer: A 🗳️

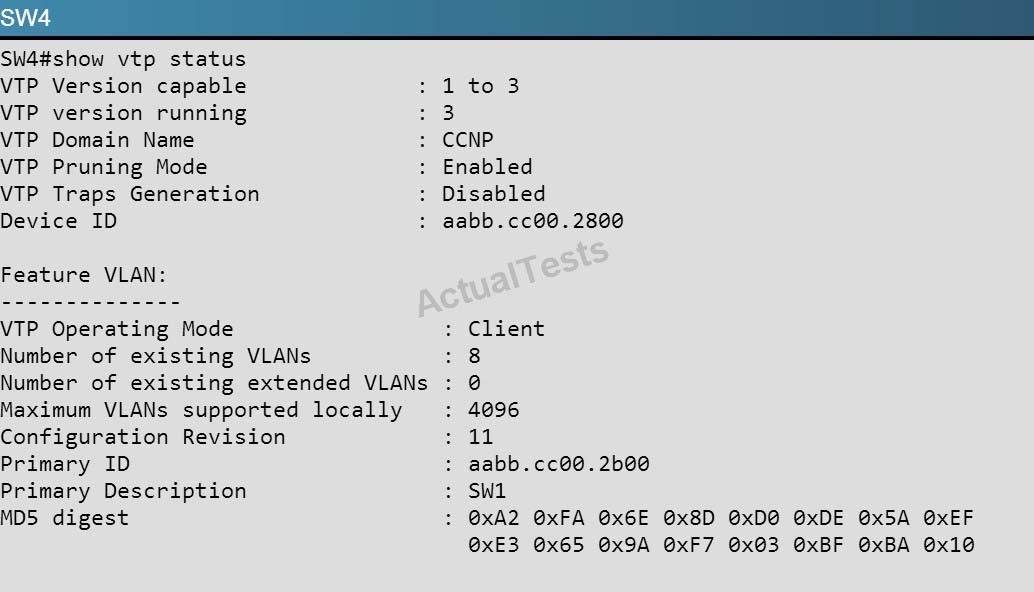

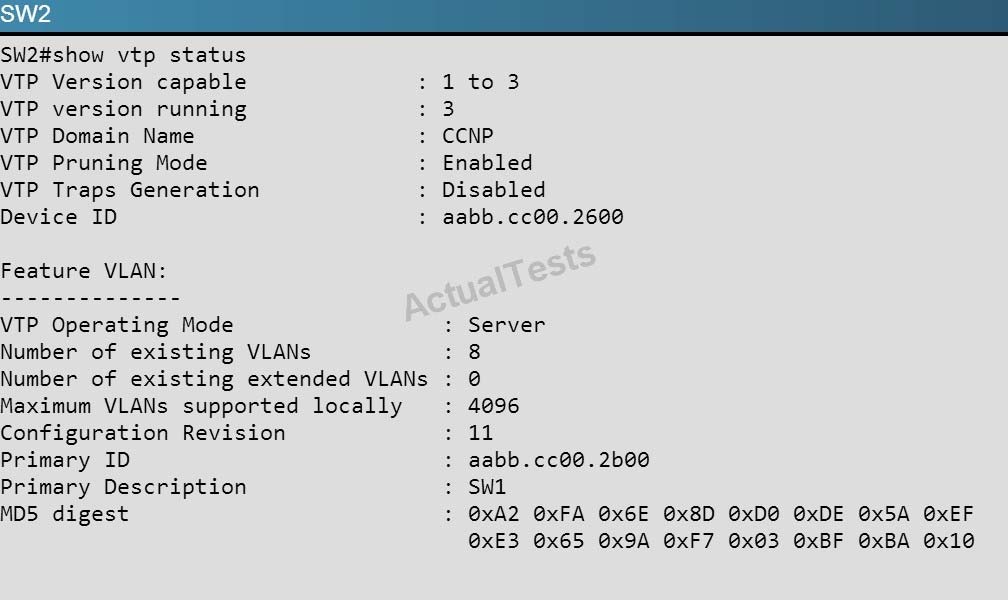

By issuing the "show vtp status command on SW2, SW2, and SW4 we see that both SW1 and SW2 are operating in VTP server mode, but SW4 is a client, so we will need to add both VLANs to SW1 and SW2.
by Bastex at Nov. 20, 2019, 9:49 a.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
Bastex
5 years, 7 months ago
Answer is B We can create VLANs on primary server only. It's SW1
upvoted 1 times
...
Community vote distribution
A (35%)
C (25%)
B (20%)
Other
