Exam 300-115 topic 3 question 14 discussion

ABC, Inc. is a medium sized company, with an enterprise network (access, distribution and core switches) that provides LAN connectivity from user PCs to corporate servers. The distribution switches are configured to use HSRP to provide a high availability solution.
✑ DSW1 primary device for VLAN 101 VLAN 102 and VLAN 105
✑ DSW2 primary device for VLAN 103 and VLAN 104
✑ A failure of GigabitEthemet1/0/1 on primary device should cause the primary device to release its status as the primary device, unless GigabitEthernet1/0/1 on backup device has also failed.
Troubleshooting has identified several issues. Currently all interfaces are up. Using the running configurations and show commands, you have been asked to investigate and respond to the following question.



All interfaces are active. DSW2 has not become the active device for the VLAN 103 HSRP group. As related to the VLAN 103 HSRP group, what can be done to make the group function properly?

Suggested Answer: C 🗳️

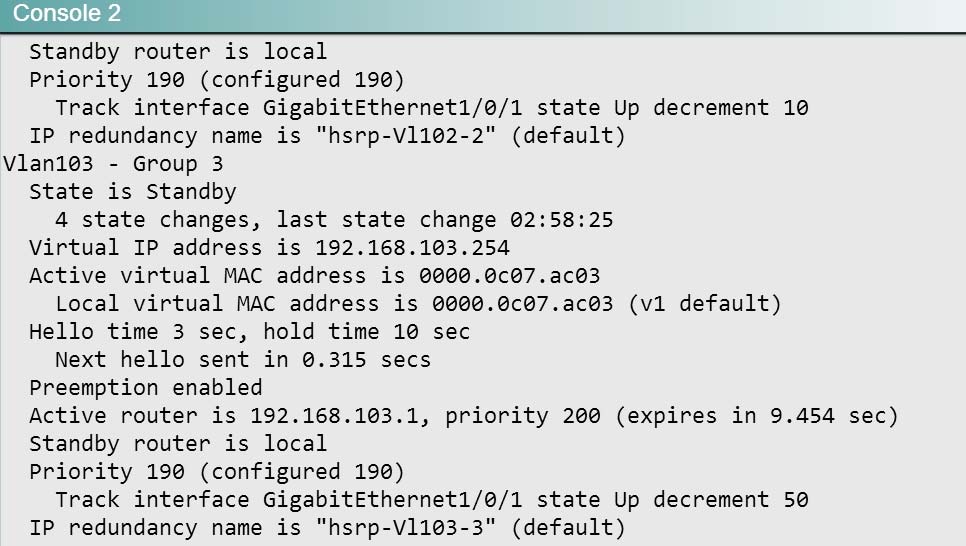

From the output shown below of the HSRP status of DSW2, we see that the active router has a priority of 200, while the local priority is 190. We need to increase the priority of DSW2 to greater than 200, but it should be less than 250 so that if the gig 1/0/1 interface goes down, DSW1 will become active. DSW2 is configured to decrement the priority by 50 if this interface goes down, so the correct answer is to increase the priority to more than 200, but less than 250.
