Exam SY0-501 topic 1 question 884 discussion

HOTSPOT -

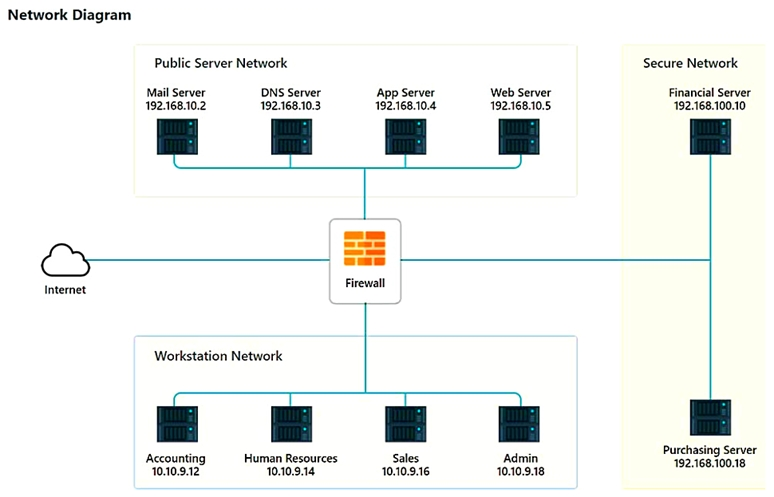

The security administration has installed a new firewall which implements an implicit DENY policy by default.

INSTRUCTIONS -
Click on the firewall and configure it to allow ONLY the following communication:
✑ The Accounting workstation can ONLY access the web server on the public network over the default HTTPS port. The accounting workstation should not access other networks.
✑ The HR workstation should be restricted to communicate with the Financial server ONLY, over the default SCP port.
✑ The Admin workstation should ONLY be able to access the server on the secure network over the default TFTP port.
The firewall will process the rules in a top-down manner in order as a first match. The port number must be typed in and only one port number can be entered per rule. Type ANY for all ports.
If at any time you would like to bring back the initial state of the simulation, please click the Reset All button.

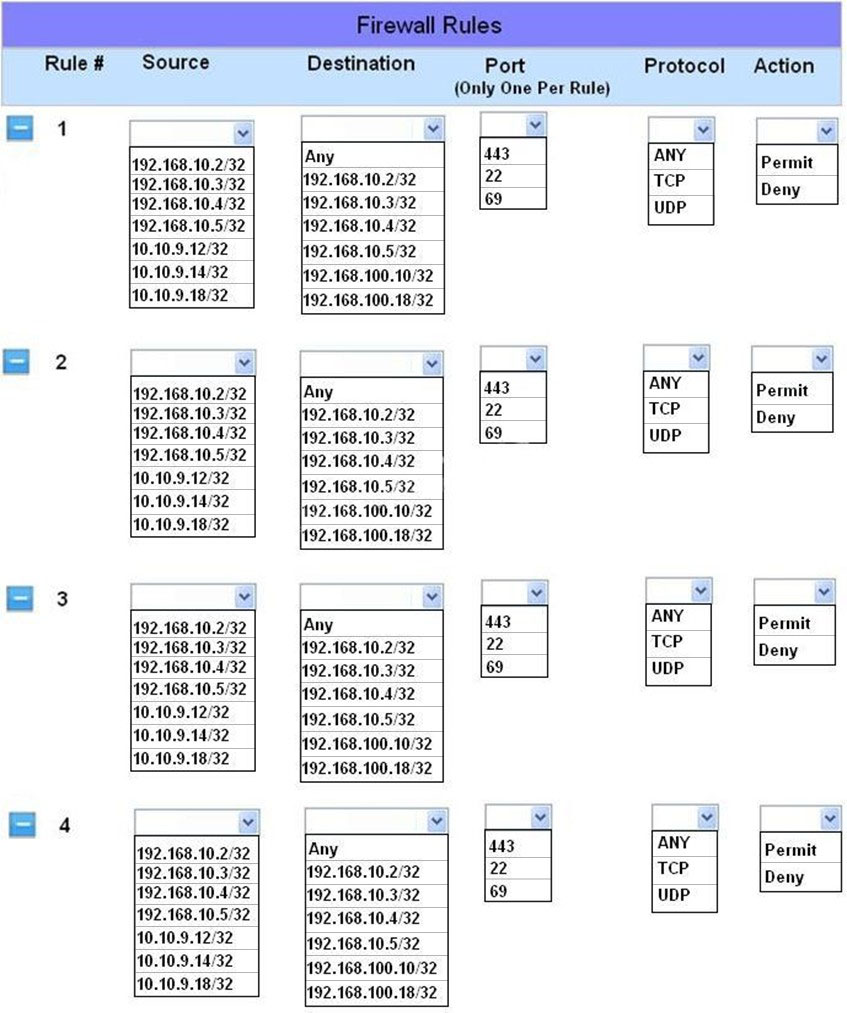

Hot Area:

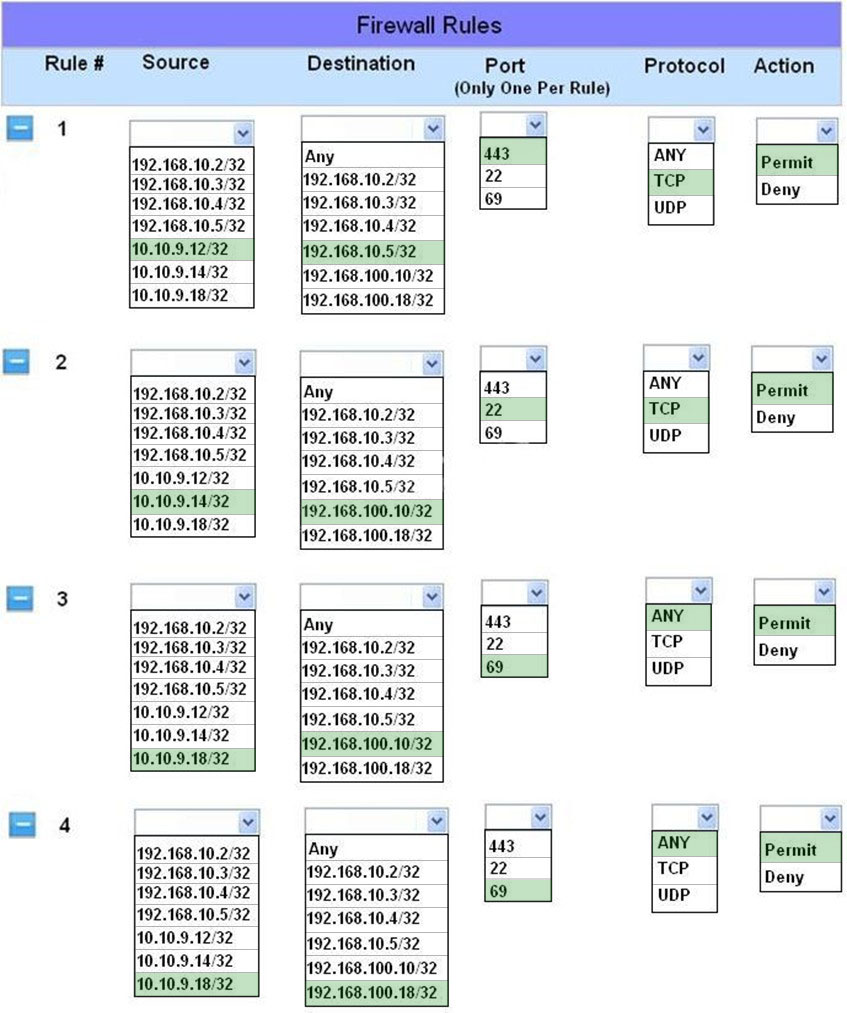

Suggested Answer:
